What Does It Take to Cut Foil Waste and Changeover Time? A High‑Precision Foil Stamping Machine
Every finishing manager knows the pain: foil that ends up as scrap between stamps, changeovers that eat half a shift, and separate die‑cutting steps that add handling and registration risk. A modern foil stamping machine solves all three. It runs at high speed without sacrificing precision. It optimizes foil use, so less material goes to waste. And it combines hot stamping, embossing, stripping, and blanking into one continuous pass. This guide explains the six essential capabilities you should look for – from user‑friendly design to integrated quality control – and shows how one manufacturer builds all of them into a single platform.
Six Capabilities That Define a High‑Performance Hot Stamping Press
Based on real product specifications, here’s what a top‑tier foil stamping machine delivers.
1. User‑friendly – intuitive design for easy operation
Complex machinery often comes with a steep learning curve. Operators may take weeks to become proficient, and mistakes during setup can damage expensive tooling. A well‑designed foil stamping machine features an intuitive interface with a large touch screen that organizes all settings logically – pressure, temperature, foil pull length, registration. Operators can learn the basics in a day and master job changeovers within a week. Less downtime, fewer errors, happier employees.
2. Quick setup – short preparation time for a fast start
Traditional stamping presses can take hours to set up for a new job – adjusting pressure, aligning dies, threading foil. Quick‑setup design cuts that time dramatically. Recipe storage on the HMI recalls previous job parameters. Changeover from a wine label to a cosmetic box takes minutes, not hours. Over 200 changeovers per year, that saves 150+ hours of productive time – nearly four extra work weeks. For a shop charging $100/hour for machine time, that’s $15,000 in recovered capacity annually.
3. Foil efficiency – optimizes foil use, minimizes waste
Foil is expensive. A machine that wastes 20% of your foil is costing you thousands per year. Synchronous longitudinal and transverse foil feeding stamps multiple images from the same foil strip, reducing gaps. Waste drops from 20‑30% to 5‑10%. If you spend $50,000 per year on foil, a 15% reduction saves $7,500 annually – over $37,000 in five years. For high‑volume operations with multiple foil colors, savings can exceed $20,000 per year.
4. Multi‑function – integrates hot foil stamping & die‑cutting
Why buy two machines when one can do both? This foil stamping machine handles hot foil transfer and precision die‑cutting on the same platform. No moving sheets between stations. No re‑registering. The integrated workflow also reduces floor space and capital expenditure. A separate die‑cutter can cost $50,000‑$150,000; eliminating it improves ROI significantly.
5. One‑pass – completes stamping, embossing, stripping & blanking
Four finishing steps in one continuous pass. The sheet enters, and finished, stripped, blanked products exit. This eliminates separate stripping and blanking operations, saving labor and floor space. In traditional workflows, each additional step adds handling time and risk of damage. Stripping alone can take 10‑15 minutes per thousand sheets; one‑pass eliminates that entirely.
6. Easy QC – integrated workflow simplifies quality control
When all steps happen on one machine, quality control is simpler. You inspect the finished product, not intermediate stages. Defects are caught immediately, not after three separate operations. Fewer rejects, less waste, happier customers. With separate machines, a defect in stamping might not be discovered until after die‑cutting, wasting both material and time.
What “One‑Pass” Means for Your Production Floor
Let’s compare two workflows: traditional separate machines vs. an integrated foil stamping machine.
| Workflow step | Separate machines | Integrated one‑pass machine |
|---|---|---|
| Hot stamping | Machine #1 | Same machine |
| Embossing | Machine #1 (or separate) | Same machine |
| Stripping | Separate station | Same machine |
| Blanking | Separate die‑cutter | Same machine |
| Material handling | Transfer sheets between machines | Sheets never leave the gripper system |
| Registration risk | Each transfer risks misalignment | One registration throughout |
| Floor space | 2‑3 machines + buffer areas | One machine |
| Operators needed | 2‑3 | 1 |
A foil stamping machine that combines all four steps reduces labor, floor space, and error rates.
The Hidden Cost of Foil Waste – And How to Cut It
Foil waste is often overlooked. Let’s put numbers on it.
Typical waste in conventional stamping
Conventional machines pull foil in one direction only. Between stamps, there are unprinted gaps – sometimes 20‑30% of the foil. That gap is waste. For a job with small images widely spaced, waste can exceed 40%.
How synchronous feeding reduces waste
Synchronous longitudinal and transverse feeding pulls foil in both directions. Stamps are placed closer together. The system also automatically calculates the optimal foil pull length and simulates the layout on the screen. For complex jobs with multiple images, the algorithm minimizes gaps to 5‑10%.
Real‑world savings example
A converter running 10,000 sheets per day with 6 foil colors can save $15,000‑$20,000 per year on foil alone. The machine pays for part of itself just through waste reduction. Over a 5‑year period, foil savings alone can exceed $75,000.
Quick Setup – What It Really Takes to Change a Job
Ask any finishing department manager: the most frustrating part of the day is changeover.
Traditional changeover
-
Unload old die and foil rolls
-
Load new die and foil
-
Adjust pressure mechanically (trial and error)
-
Align registration (test sheets, adjust, repeat)
-
Total time: 60‑120 minutes
Modern quick setup
-
Recall stored recipe on HMI
-
Swap die and foil (tool‑less or quick‑clamp)
-
Run a few test sheets
-
Fine‑tune pressure via touch screen (0.01mm precision)
-
Total time: 15‑20 minutes
Over 200 changeovers per year, that saves 150+ hours of productive time – equivalent to nearly four extra work weeks. At $100/hour machine time, that’s $15,000 in recovered capacity.
User‑Friendly Design – Why It Matters for Your Operators
A machine that frustrates operators will have high turnover and frequent errors.
Intuitive HMI
A 19‑inch high‑definition touch screen organizes settings logically. Pressure, temperature, foil pull length, and registration are all on one screen. Operators don’t need to memorize codes or navigate deep menus. The screen is also visible from across the room, so operators can monitor status without walking to the panel.
Guided setup
The system walks operators through each step of a job change. It asks for foil type, pressure, and repeat length. Then it automatically calculates the optimal foil feed pattern. This reduces the mental load on operators and speeds up training. New operators become productive in days, not weeks.
Error prevention
If an operator enters an out‑of‑range value (e.g., pressure too high for the paper), the machine warns them before starting. This prevents damage to tooling and substrate. The system also logs all changes, making it easy to audit and troubleshoot.
Investment Payback – A Realistic Look at ROI
Let’s calculate the payback period for upgrading to a one‑pass foil stamping machine.
| Benefit | Annual savings (estimate) |
|---|---|
| Foil waste reduction (15% of $50k) | $7,500 |
| Faster changeovers (150 hrs @ $100/hr) | $15,000 |
| Labor reduction (1 operator @ $50k) | $50,000 |
| Reduced floor space (rental value) | $5,000 |
| Lower reject rate (2% improvement) | $10,000 |
| Total annual savings | $87,500 |
A typical high‑end foil stamping machine costs $150,000‑$250,000. At $87,500 annual savings, payback occurs in 1.5‑2.5 years. After that, the savings flow directly to profit.
Common Questions About High‑Speed Foil Stamping
Q: Can the machine handle thick paperboard?
Yes. The rigid frame and adjustable pressure (0.01mm precision) accommodate substrates from thin label stock (80 gsm) to heavy board (600 gsm).
Q: What’s the maximum sheet size?
Standard models handle up to 1000mm × 700mm. Larger sizes available on request.
Q: How many foil colors can I run in one pass?
Up to 6, each with independent Yaskawa servomotor control. This allows multi‑color and multi‑position stamping without multiple passes.
Q: Is training included?
Yes. On‑site installation and operator training are provided. The trainer stays until your team can run the machine independently.
Q: What about maintenance?
Daily cleaning of the heating plate and grippers, weekly lubrication of moving parts, and annual calibration of pressure sensors. A spare parts kit is included.
Where to Find a Foil Stamping Machine Built Like This
All the features described above – one‑pass capability, synchronous foil feeding, quick setup, user‑friendly controls, and integrated die‑cutting – are available from GUOWANG, a post‑press equipment manufacturer founded in 1993. With over 400 employees, 160,000 m² of factory space, and more than 100 patents, GUOWANG has invested over 30 million RMB in advanced production lines. Their machines carry CE certification and are exported worldwide.

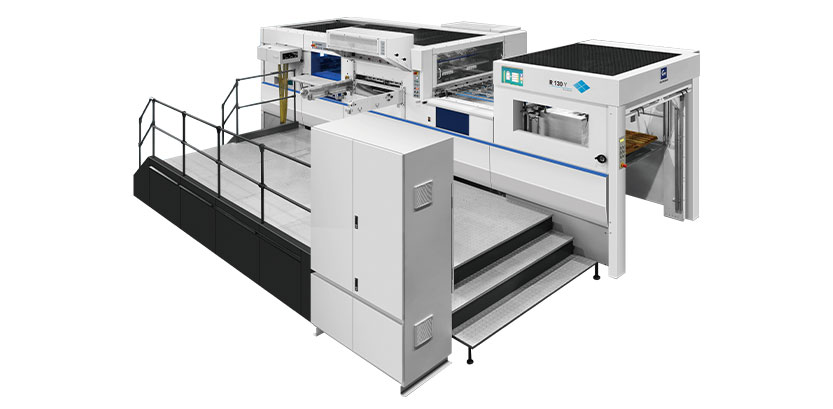

The GUOWANG hot stamping series is designed to deliver high precision, high pressure, and high speed, meeting the demands of converters who need both quality and efficiency.
Maintenance and Long‑Term Reliability
To keep your foil stamping machine running for decades, follow this schedule.
| Interval | Task |
|---|---|
| Daily | Clean heating plate, inspect grippers, check foil path |
| Weekly | Lubricate cam followers, inspect air filters |
| Monthly | Check pressure sensor calibration, inspect belts |
| Quarterly | Replace worn stripper pins, check gear oil |
| Annually | Factory inspection (optional) |
GUOWANG provides a detailed maintenance manual and stocks spare parts for all models.
See a One‑Pass Demo
You don’t have to imagine the savings. GUOWANG can run a demo of their foil stamping machine using your substrate and your foil. Watch the sheet go in and the finished, stripped, blanked product come out. Time the setup. Measure the foil waste.
A foil stamping machine that pays for itself through waste reduction, faster changeovers, and lower labor costs is within reach.
