D-110R intelligent double rotary sheeter with mark register

Paper weight range 150-1000 gsm

Maximum paper format 1100 mm

Maximum cutting speed 300 m/min

REQUEST A QUOTE

Compare

Download

D-110R

intelligent double rotary sheeter with mark register

Applications
Introduction
Features
Details
Parameters
Products
News

Applications

Folding Color Box

Paper Products Processing

Corrugated Cardboard Boxes

Tobacco & Alcohol Packaging

Introduction

This intelligent double rotary sheeter combines advanced technology and rich experience, is developed specially for ink-jet of bar-code, QR-code, administration codeetc. on various package and materi-al, and is widely used in cardboard, kraftpaper, high-gloss photo paper, gold and silvercar dboard, aluminum foil paper, laserpaper, tobacco and alcohol packagingpaper,etc.To improve the production efficiency and optimizing the accuracyof cutting paper over64gsm, it isequipped with high-quality cutting roller by avant-garde design and new technology, backlash-freegears, high-speed dynamic-bal-anced knifeholders, 4groups of independent de-curler to automatically adjust de-curling degree according to the paperroll status, British imported high-power servo system with energy storage cabinet and improved lubrication system to getmore stable long-term precise cutting at high speed with lower noise; the high-definition LED touch screen with graphic direct-view interface design, dual-screen synchronization system for more convenient and comfortable operation; overall heightened body for more piling by each delivery.

Compared to the other products in the market, we bring the sheeter noble and unique features for high-grade clients not only through the configurations as above introduced , but also by entirely high-level design, processing, production and assembly. Moreover, there are richer settings to select: auto slitters positioning by servo system, auto waste ejection device, up-down type paper pressing mechanism, etc..

upload/1c/202505/intelligent-double-rotary-sheeter-with-mark-register-1.jpg

Details

Electric Control Part

Using 19-inch industrial computer, British CT high-end high-power servo system, equipped with a software control system with independent intellectual property rights, the picture is harmonious, the display content is rich, and the operability is strong. High-efficiency high-power servo, combined with energy storage, effectively saves electric energy, improves economy, and truly achieves green and energy-saving.

Electric Control Part

Slitting Part (Optional)

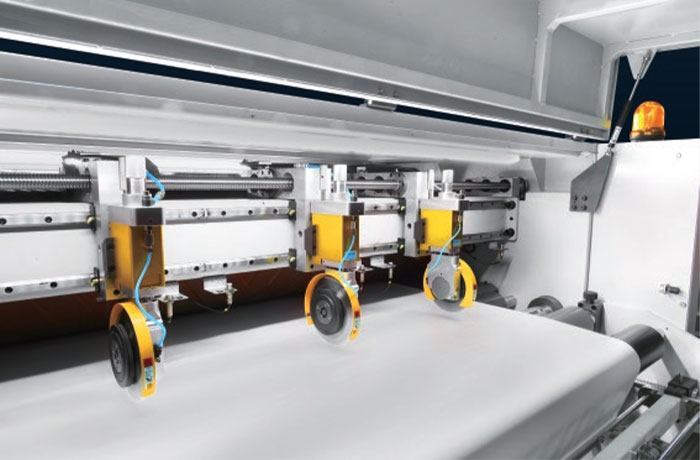

Servo control high-precision center splitting knife and trimming knife, realize automatic positioning, convenient adjustment, and improve efficiency.Two-stage automatic air pressure lowering and relying on the knife action to accurately adjust the cutting depth ofthe blade. The cutting structure of cutting reduces the paper powder while making the cut surface smoother.

Auto Positioning (Optional)

Automatic swift adjustment (50mm/s) by inputting paper parameters in touch screen

1. Paper unwinder

2. Web guide sensor

3. Slitters

4. Decelerating pressing belt

5. Jogging plates, separating plates, baffle plates

Main Body

The main body ofthe main body adopts a casting structure and is made of high-quality nodular cast iron. The accuracy level is required to ensure the stability ofthe body, and the whole machine runs more stable and reliable.

Oil Lubrication System

The spray gear ubrication system ensures the gears are fully lubricated during the entire operation. Effectively prolong the service life ofthe machine.

Double Rotary Knife Set

Equipped with high-power and high-response British CT servo to ensure cutting accuracy and efficiency. The introduction of Taiwan's advanced cutter head technology and a gap-free gear structure design can effectively eliminate the shaking gap of the two knives, ensuring the life of the blade and cutting accuracy.The box body is made of nodular cast iron. After aging treatment, it is processed by a 5-axis high-precision machining center at one time to ensure the accuracy and consistency of the product. The tool holder adopts an integral casting structure, which effectively guarantees the stability of the tool body during high-speed operation.

Reverse Bending System

The automatic recurve control system will automatically adjust the degree of recursion according to the change of the paper roll,so that the paper isflatter and the cutting is smoother.

Parameters

Specifications

Category	D-110R
Paper range	150-1000GSM
Maximum paper size	1100mm
Maximum roll diameter	1500mm
Cut-off length range	400-1100mm
Cutting accuracy	± 0.10mm
Maximum cutting speed	300m/min
Maximum cutting frequency	570p/min
Stack height (including pallet)	1700mm
Main motor power	90kW
Total power	123kW
Total weight	20TON
Air supply requirements	6-8bar; 50L/min

D Series Installation Floor Plan

Product Features

Configuration Items		Configuration ● Standard ○ Optional × Not available
		D110R
Mill Roll Stand Section
1	Accumulator-based hydraulic power unit	●
2	Pneumatic brake tension control	●
3	Electro-pneumatic proportional valve	●
4	Automatic anti-bowing device	●
5	Automatic web guiding device	●
Slitting Main Unit Section
1	Main drive servo	●
2	Traction servo	●
3	Center-split and edge-trimming knives	○
4	Air-cooled lubrication and hydraulic station	●
5	High-power trim waste extraction system	○
6	Precision cutter for registered label cutting	●
7	Splicer	○
8	16-inch true-color industrial PC	●
Conveying section
1	Static elimination device	●
2	High-speed servo-driven belt	●
3	Telescopic high-speed belt structure	●
4	Automatic belt tensioning system	●
5	Vacuum paper holding function	●
6	10-inch industrial PC	●
Paper delivery section
1	Left and right side vibration for paper alignment	●
2	Tag insertion for counting	●
3	Front paper jogging mechanism	●
Electrical Control Section
1	High-quality electrical components	●
2	Safety control components	○
3	Main industrial control computer	●
4	Secondary industrial control computer	●
5	Variable frequency drive (VFD)	●
6	Sensors	●
7	Push-button switches	●
8	Low-voltage power distribution equipment	●
9	Operation controller	●
10	High-power servo system	●
