What Can a Double-Worm-Gear Paper Cutting Machine Cut?

You're running a bindery or a packaging plant, and you need to cut thick stacks — coated board, hardcover book blocks, laminated sheets — without the knife deflecting or the cut drifting off square. A Paper Cutting Machine with double-worm-gear transmission uses bilateral force bearing to keep the blade on track even when it's biting into dense material. This article explains how the twin turbine transmission works, what the hydraulic system contributes, and what to verify when you're matching a guillotine cutter to your production floor.

How Does Twin Turbine Transmission Keep the Cut Square?

Double-Worm-Gear and Bilateral Force Bearing

A conventional guillotine uses a mechanical cam to position the knife bed and drive the cutting stroke. As the cam wears, the knife timing shifts, and the cut drifts out of square — a problem that shows up as uneven trim on bound books or misaligned carton blanks.

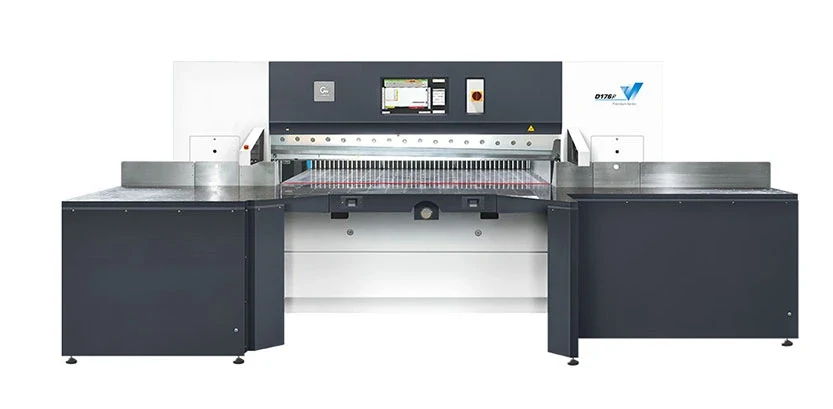

The D176P replaces the cam with a double-worm-gear transmission and an electronic-cam-controlled knife-bed positioning system. The worm gear engages the knife carriage from both sides, distributing the cutting force across the full width of the blade. That bilateral force bearing is what prevents knife deflection when cutting hard paper. The blade stays perpendicular to the table throughout the stroke, so the cut face comes out square regardless of how dense the material is.

What the Transmission Delivers in Practice

The transmission supports a maximum cutting speed of 46 times per minute and a paper feed speed of up to 30 meters per minute. The electronic cam control coordinates the knife bed position with the feed cycle, so the knife doesn't start its downstroke until the paper is positioned and clamped.

The machine also uses precision ball screws and heavy-duty guide rails for the feed axis. The rail mounting surface is precision machined for high accuracy and rigidity, which supports fast feeding and micron-level positioning. For heavy-load and long-stroke thick material processing, that rigidity keeps the feed accurate cycle after cycle.

What Does the Dual Hydraulic Drive System Add?

Clamping Pressure and Cutting Force

The hydraulic system handles two jobs: clamping the paper stack and driving the knife through the cut. The D176P uses a dual hydraulic drive system that provides powerful cutting performance and stable pressure control. The integrated hydraulic design ensures smooth and precise operation while reducing mechanical stress on key components.

Clamp pressure is adjustable from 1.5KN to 70KN. That range covers everything from a thin stack of lightweight paper, where 1.5KN holds the sheets without crushing them, to a dense block of coated board, where 70KN compresses the stack so the knife cuts cleanly through every sheet. The pressure adjusts automatically according to the paper dimensions, which reduces setup time between jobs.

Overload Protection and Connecting Rod

The connecting rod assembly is designed for heavy-duty cutting conditions. A high-strength rod transmits the cutting force from the drive to the knife carriage, and an overload-protection mechanism prevents damage to critical cutting components if the knife hits an obstruction or the material exceeds the machine's capacity.

How Does the Air Table Reduce Operator Fatigue?

Integrated Air Balls and Chrome-Plated Surface

Moving a 165mm stack of coated board across a steel table takes effort. The friction between the paper and the table surface resists every push, and the operator has to lean into the stack to slide it into position. Over a full shift, that repetitive strain adds up.

The D176P worktable is equipped with integrated air balls that significantly reduce friction between the paper stack and the table surface. Air blows through the ball array, creating a thin cushion that lets the stack float across the table with minimal effort. The operator guides the stack into position with one hand instead of wrestling it into place. That improves positioning accuracy and reduces operator fatigue.

The air table and side tables also use a precision chrome-plated surface for corrosion resistance and long-term durability. The smooth finish reduces friction further, and the chrome plating resists the wear that a bare steel table would show after years of heavy stacks sliding across it.

One-Piece Cast Frame and Vibration Control

The machine frame is manufactured from high-strength resin sand castings and engineered as a one-piece structure. A welded frame has joints that can flex under the shock load of a cutting cycle. A one-piece casting has no joints to flex — the rigidity is distributed through the entire frame.

That rigidity minimizes vibration during operation, which directly affects cutting accuracy. Vibration at the knife edge shows up as a rough cut face or a dimensional drift across the stack. The cast frame holds the knife and the table in fixed relationship, so the ±0.1mm cutting accuracy stays consistent across the full 2000mm cutting length.

Where Do Heavy-Duty Guillotine Cutters Get Used?

Print Finishing, Packaging, and Bookbinding

The D176P is built for operations that cut thick, dense materials at production speed. That covers a range of applications:

• Bookbinding — trimming bound book blocks, hardcover case blocks, and perfect-bound spines

• Commercial printing — cutting coated stock, laminated sheets, and cover boards to final trim size

• Packaging production — trimming folding carton sheets, corrugated blanks, and rigid box board

• Label and tag converting — cutting dense stacks of label stock and hang tags

• Paper merchants — reducing parent sheets to customer-ordered sizes

The 2000mm maximum cutting length and 1760mm maximum cutting width handle large-format sheets, and the 165mm maximum cutting height covers thick stacks that lighter guillotines can't process. The heightening design of the dual-turbine paper cutter increases the cutting stacking thickness and feeding space, enabling the cutting and processing of thick cardboard, hardcover paper stacks, and special thick materials.

A Paper Cutting Machine like the D176P from Guowang also includes a 22-inch intelligent touchscreen control system with a built-in graphic-text integrated fault self-diagnosis function, a safety light curtain that stops the machine instantly when the cutting area is breached, and a knife-back safety structure that prevents damage from misoperation.

What Do Operators Ask About Guillotine Cutters?

How do I set the clamp pressure for different materials?

Start with the automatic pressure adjustment, which sets the clamp based on the paper dimensions you enter. For lightweight paper, the system uses lower pressure near the 1.5KN minimum to avoid crushing the sheets. For dense board, it increases toward the 70KN maximum to compress the stack. If the cut face looks rough, increase the pressure slightly. If the sheets are marking under the clamp, decrease it. The stepless pressure adjustment lets you fine-tune without changing mechanical parts.

What maintenance does the dual-worm-gear system need?

The centralized automatic lubrication system delivers precise amounts of lubricant to critical components at programmed intervals. That system reduces wear on the worm gears, ball screws, and guide rails. Check the lubricant reservoir regularly and refill it when the level drops. Inspect the knife for nicks and sharpen it when the cut quality drops. The maximum sharpenable blade length is 60mm, so the knife can be resharpened multiple times before replacement.

Can the machine connect to my production management system?

Yes. The machine has an open data interface that enables connection to customer-side MES or ERP systems for convenient management. Production data, job parameters, and maintenance records can flow into the plant's management system without manual entry. That integration is useful for operations that track cutting jobs by order number or need to pull machine data into a centralized dashboard.

What safety features protect the operator?

The machine is equipped with a high-performance multi-beam safety light curtain that continuously monitors the cutting area and instantly stops machine movement when intrusion is detected. The critical safety functions use a dual-channel safety architecture that monitors the equipment operating status in real time and triggers rapid responses under abnormal conditions. The knife-back safety structure prevents machine damage caused by misoperation. Together, these systems protect both the operator and the equipment.

Let's Match a Guillotine Cutter to Your Bindery Line

Share Your Cutting Size and Material Requirements

A Paper Cutting Machine should match your maximum sheet size, stack height, and material density — not the other way around. The D176P Double-worm-gear Guillotine Paper Cutter from Guowang cuts up to 2000mm × 1760mm with a 165mm maximum stack height at 46 times per minute, holding ±0.1mm accuracy through the double-worm-gear transmission and one-piece cast frame. The air ball table, automatic lubrication system, and 15-inch touchscreen control keep the machine running through heavy production schedules. If you're specifying a guillotine cutter for bookbinding, packaging, or commercial print finishing, send us your cutting size and material requirements — we'll help you confirm the right configuration before you order.
