Does a Combination Foil Stamping & Die Cutting Machine Need Two Units?

You're producing premium packaging—cosmetic boxes, liquor cartons, cigarette packs—and the job requires both foil stamping and die-cutting. Running those processes on separate machines means two setups, two operators, and two passes through the factory. A Combination Foil Stamping & Die Cutting Machine with dual-unit architecture changes that. The S106YQ integrates two independent processing units into one machine, allowing stamping and die-cutting to run in sequence without intermediate handling. This article explains what the dual-unit design delivers, how the 20-zone heating system ensures consistent foil transfer, and what to verify before specifying a multi-process machine for your packaging production.

What Does the Dual-Unit Design Actually Deliver?

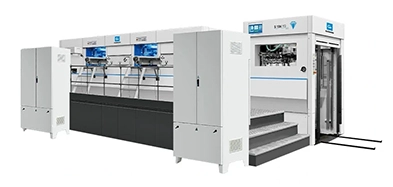

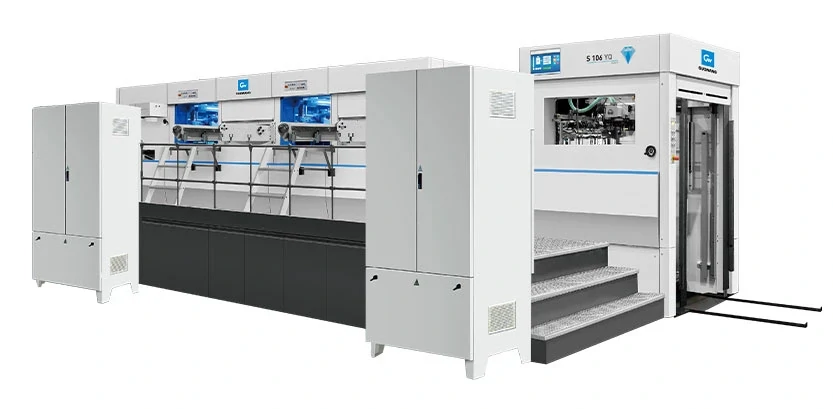

The S106YQ is built around two independent processing units, each capable of foil stamping and die-cutting. The first unit handles hot stamping, holographic stamping, and die-cutting. The second unit performs die-cutting and waste stripping. Because both units operate on the same machine, sheets move from one process to the next without being removed, stacked, and reloaded. This eliminates the handling damage and registration drift that occur when sheets are transferred between separate machines. The integrated transmission connecting rod structure guarantees the consistency and coordination of the dual-platform movements, and double coding detection ensures safety and reliability.

Independent Unit Operation With Shared Control**

Each unit can run independently, allowing one unit to operate while the other stands by. The Miki clutch controls the feeding belt, enabling one unit to run while the other is idle. This flexibility supports maintenance and job changeover without stopping the entire production line.

Torque Limiter for Gripper Protection**

A torque limiter protects the gripper bars from secondary collision, ensuring safe and stable production. When an obstruction is detected, the limiter disengages to prevent damage to the gripper system.

How Does the 20-Zone Heating System Improve Foil Stamping?

Foil stamping quality depends on heat. Too little, and the foil doesn't adhere. Too much, and the paper scorches. The S106YQ uses 20 independently controlled temperature zones, each with French sensors and Omron PID control accurate to ±1°C. Independent zone control allows the operator to set different temperatures for different areas of the platen, compensating for heat loss at the edges and ensuring uniform foil transfer across the full sheet. The system also includes a preheat function and automatic foil consumption calculation. The machine supports 6 vertical and 6 holographic simultaneous stamping, allowing multiple processes to be completed in one step and raising equipment utilization.

Zone Control for Large Format Dies**

For dies that span the full 1040×740mm stamping area, heat distribution is a challenge. The 20-zone system allows the operator to set different temperatures for different sections, ensuring that every part of the die reaches the optimal transfer temperature.

Foil Monitoring and Alarm System**

The computer-controlled foil monitoring system displays remaining and consumed foil length. An alarm triggers when the foil length drops below 6 meters, preventing the press from running dry.

What Are the Core Technical Specifications?

The S106YQ handles a broad range of packaging materials and formats. The maximum sheet size is 1060×760mm, with a minimum of 450×370mm. The maximum die-cutting area is 1045×745mm, and the maximum hot stamping area is 1040×740mm. Die-cutting precision is ≤±0.075mm, with standard hot stamping precision at ≤0.075mm and holographic registration stamping precision at ≤0.20mm. The machine is equipped with five main frames machined to ±0.01mm tolerance using Mitsubishi 5-face machining.

Paper and Board Compatibility**

The machine processes paperboard from 0.1–3mm, corrugated board up to 4mm, and white paperboard from 90–2000g/m². This range covers folding cartons, corrugated packaging, and heavy board applications.

Speed and Pressure Ratings**

The dual 300T pressure system delivers a combined 600T of die-cutting force. The maximum die-cutting speed is 6500 sheets per hour, with hot stamping at 5500 sheets per hour and holographic stamping at 5000 sheets per hour.

Where Does a Dual-Unit Machine Deliver the Most Value?

The S106YQ serves packaging converters producing premium cartons that require both foil stamping and die-cutting. Cosmetic packaging, liquor and spirits cartons, cigarette packs, and luxury gift boxes all benefit from the combination of processes in one machine.

• Cosmetic packaging — foil-stamped logos and decorative elements with precise die-cutting

• Liquor and spirits cartons — premium finishes with holographic and hot stamping

• Cigarette packaging — high-speed stamping with tight registration

• Luxury gift boxes — multi-process finishing in a single pass

• Pharmaceutical cartons — precise die-cutting with foil-stamped batch codes

[H3] Cosmetic and Luxury Packaging Applications**

Cosmetic cartons and luxury gift boxes demand flawless metallic finishes and precise die-cut shapes. The dual 300T pressure system ensures clean cuts through heavy board, while the 20-zone heating system delivers uniform foil transfer across the full sheet.

Liquor and Cigarette Packaging**

Liquor and cigarette packaging often requires holographic stamping for anti-counterfeiting and brand differentiation. The S106YQ supports 6 vertical and 6 holographic simultaneous stamping, allowing complex designs to be produced in a single pass.

What Automation and Safety Features Are Included?

The S106YQ is designed for automated operation with multiple safety systems. A safety light curtain monitors the danger zone and halts the machine instantly when an object approaches. The torque limiter protects gripper bars from secondary collision. Automatic lubrication for cams and chains ensures uniform oil supply without manual intervention. The non-stop switching of main and auxiliary paper feeding platforms saves paper loading time and boosts overall productivity.

Non-Stop Feeding and Delivery**

The main and auxiliary feeding platforms support non-stop switching, reducing downtime during paper loading. The auxiliary delivery rack ensures non-stop delivery, keeping production running continuously.

Centerline Registration for Quick Setup**

Centerline registration ensures fast installation of the middle stripping frame and cutting die, shortening set-up time when job shifting occurs. The dual-position adjustment for gripper bars enables quick adjustment with high precision.

Common Questions About Combination Stamping and Die-Cutting

What is the maximum sheet size the machine can handle?

The S106YQ handles sheets up to 1060×760mm, with a minimum of 450×370mm. The maximum die-cutting area is 1045×745mm and the maximum hot stamping area is 1040×740mm.

How does the 20-zone heating system save energy?

Independent zone control allows the operator to heat only the zones that are actively stamping. This reduces energy consumption compared to heating the entire platen uniformly.

Can the machine run foil stamping and die-cutting simultaneously?

The dual-unit design allows both processes to run in sequence on the same machine. The first unit handles stamping and die-cutting, while the second unit performs die-cutting and waste stripping. This eliminates the need for separate machines and intermediate handling.

What maintenance does the machine require?

The machine features automatic lubrication for cams and chains. Routine maintenance includes checking the heating zones for consistent temperature, verifying the foil monitoring sensors, inspecting the gripper bars for wear, and monitoring the central quantitative lubrication system.

Request a Dual-Unit Stamping and Die-Cutting Configuration

A Combination Foil Stamping & Die Cutting Machine with dual-unit architecture, 20 heating zones, and ≤±0.075mm precision is the practical choice for packaging converters who need multi-process finishing in a single machine. The S106YQ from Guowang delivers 6500 sheets/hour die-cutting speed, 300T+300T dual-unit pressure, 1060×760mm max sheet size, 20 independent heating zones, and 6 vertical + 6 holographic simultaneous stamping. Contact Guowang for a dual-unit stamping and die-cutting configuration assessment → their team can help you select the right model, heating configuration, and tooling for your specific packaging materials and production targets.
