Can an Automatic Die Cutting Machine Handle 600 Tons?

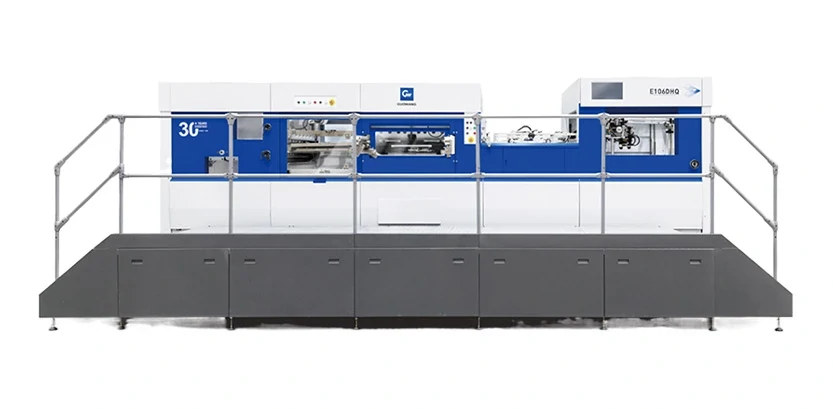

Yes—when the frame, the toggle mechanism, and the platen are engineered for that load. An Automatic Die Cutting Machine rated at 600 tons is built to push a heated die through 3mm grey board, 4mm micro-flute, and laminated stock that would stall a standard 300-ton press. The E106DHQ from Guowang pairs that pressure with a 6-zone heating system and an inline partial waste stripping station, converting thick substrates into finished blanks at up to 6,000 sheets per hour with ±0.075mm precision. This article explains where the 600 tons go, how heat and pressure work together, and what to verify when you're matching a heavy-duty hot die-cutter to a premium packaging line.

Where Does the 600-Ton Force Actually Go?

Cutting, Creasing, and the Board's Resistance

A die-cutting press doesn't distribute its rated tonnage evenly across the sheet. The force concentrates at the cutting rules, the creasing lines, and any emboss pattern on the die. A 2mm grey board with a dense fiber structure resists penetration differently than a 300g/m² folding carton.

The 600-ton rating defines the maximum load the frame and platen can sustain without deflection. The E106DHQ's five core parts are machined to ±0.01mm tolerance on Mitsubishi five-face machining centers, and the integrated cast upper platform is stress-relieved to bear that pressure without losing alignment. Without that rigidity, the die would shift under load, and the cut-to-print registration would drift.

The Enlarged Flywheel and Torque Smoothing

The flywheel on the E106DHQ is enlarged to store more kinetic energy and smooth the torque spike at the bottom of each press cycle. On a 600-ton press, that spike is significant. The flywheel absorbs it, so the drive train sees a smoother load and the cutting pressure stays consistent from the first sheet to the last.

How Does Heat Change the Cutting Dynamics?

6-Zone Heating from 20°C to 120°C

The E106DHQ uses 6 heating zones adjustable from 20°C to 120°C. The heat softens the coating and the board surface, reducing the force needed to penetrate the die and improving edge quality on thick stock.

The 6-zone arrangement matters on a large platen. A single heating element would create a temperature gradient from center to edge, and the die would cut differently across the sheet. The independent zones let the operator balance the temperature across the full 1045×745mm die-cutting format, so cut quality stays consistent from corner to corner.

Hot Die-Cutting and Embossing in One Pass

The heat also enables inline embossing. A cold die-cutter can cut and crease, but it cannot produce a deep, permanent emboss on thick board without cracking the surface. The heated die softens the board just enough to deform under pressure and hold the embossed shape after cooling.

That capability lets a single machine deliver both the cut shape and the decorative emboss. For premium packaging—spirits boxes, cosmetic cartons, rigid gift boxes—the emboss is part of the brand presentation, not an afterthought.

What Does Partial Waste Stripping Change?

Three-Way Waste Removal Without Removing the Die

The E106DHQ uses a three-way waste removal structure with top, middle, and bottom frames. The partial stripping function clears the internal waste while leaving the surrounding matrix intact, so the blanks stay registered in the sheet until they reach the delivery pile.

That arrangement is what separates the E106DHQ from a full-strip machine. The blanks remain nested in the sheet through the stripping station, which reduces the risk of misalignment before the finished stack is formed. The top frame uses a pneumatic quick-lift system for faster die changes.

Non-Stop Feeding and Delivery

The waste stripping station is only useful if sheets keep moving through it. The E106DHQ includes a pre-loading system with a 1600mm stack height, allowing continuous feeding without stopping the machine. The delivery section includes an auxiliary mechanism for non-stop operation.

That continuous flow matters at 6,000 sheets per hour. A machine that stops every time the feeder pile runs out or the delivery pile fills up loses the advantage of its speed. The non-stop systems keep the press cycling through pile changes.

How Does the Machine Hold ±0.075mm Precision at Speed?

Servo Pressure Control and Pneumatic Locking

The ≤±0.075mm die-cutting precision is held by a combination of mechanical rigidity and electronic control. The servo pressure system adjusts with 0.01mm accuracy, keeping the cutting depth consistent as board thickness varies across the sheet.

The upper and lower die frames are locked by SMC pneumatic cylinders. A die that isn't seated flat will produce a cut that varies in depth, and the precision spec would be meaningless. The pneumatic locking removes that variable from the setup.

Patented Independent Rear Gauge

The machine includes a patented independent rear gauge that adjusts the gripper bars separately on two sides. On a standard press, the gripper bars move together, and a slight misalignment in the sheet position can't be corrected without adjusting the entire feeder. The independent adjustment maximizes the positioning accuracy of the sheet before it reaches the die.

Where Does This Machine Fit in Premium Packaging?

An Automatic Die Cutting Machine in the 600-ton class is specified for folding cartons, food packaging, cosmetic boxes, premium liquor boxes, and electronic packaging inserts. Those products share a need for thick board, deep emboss, and a clean cut edge.

The machine is also used for offset-laminated and folding-carton products, where the laminated surface requires a clean cut without delamination. The heated die and controlled pressure produce a sealed edge on the laminate that a cold die-cutter cannot achieve.

The E106DHQ from Guowang combines the 600-ton press frame, the 6-zone heating system, and the partial waste stripping station in one platform. The 290cm integrated ultra-wide wall plate and 22-ton machine weight reflect the structural mass required to hold precision under that pressure.

What Should You Check Before Selecting a Heavy-Duty Hot Die-Cutter?

How do I match the pressure rating to my board?

Check the 0.1–3mm board and ≤4mm corrugated range against your thickest substrate. The product name references 600 tons, while the parameter table lists 550t as the rated die-cutting pressure. Use 550t as the working limit and treat 600t as the frame's design margin. If your board approaches the top of the thickness range continuously, confirm the pressure margin with the manufacturer.

What heating configuration does my die need?

The 6-zone, 20–120°C system covers most hot die-cutting and embossing applications. If your die has a large solid area that draws heat away from the platen, the zone control lets you raise the temperature in that area without overheating the rest of the sheet. Confirm the die layout and heating requirements before finalizing the specification.

What maintenance does the 600-ton frame need?

The main drive uses a combined oil-bath and drip lubrication system to keep the toggle links lubricated. The toggle lever section has an optimized oil circuit for durable high-speed running. Check the lubrication intervals and the chain tension during scheduled maintenance. Inspect the pneumatic locking cylinders for consistent pressure, and verify the servo pressure calibration against a reference load cell.

Straight Answers on Heavy-Duty Hot Die-Cutting

What's the difference between 550 tons and 600 tons?

The product name and marketing description reference 600 tons as the design press force. The parameter table lists 550t as the maximum die-cutting pressure. The 600-ton figure represents the structural design capacity of the frame, while 550t is the rated working pressure for production. For application planning, use 550t as the working limit.

Can the machine strip waste and cut in one pass?

Yes. The three-way waste removal structure operates inline with the die-cutting station, so the sheet is cut and partially stripped before it reaches the delivery pile. The partial stripping function removes internal waste while leaving the matrix intact, keeping blanks registered until they are separated at delivery.

What is the significance of the 290cm wall plate?

The 290cm integrated ultra-wide wall plate is the structural backbone of the press. A wider wall plate distributes the 600-ton load across a larger area, reducing deflection under pressure. Less deflection means the die stays aligned, and the cut precision holds at ±0.075mm even at the top of the speed range.

Does the machine require a special foundation?

The machine weighs 22 tons, with overall dimensions of 6264×4350×2580mm. A machine of that mass requires a foundation designed for the static and dynamic loads of the press cycle. Confirm the floor loading capacity and foundation specification with the manufacturer before installation.

Let's Match a Heavy-Duty Die-Cutter to Your Packaging Line

Share Your Board Thickness and Emboss Requirements

An Automatic Die Cutting Machine in the 600-ton class should match your thickest board, your emboss depth, and your waste stripping layout—not the other way around. The E106DHQ Heavy‑duty Hot Die‑cutting Machine with Partial Waste Stripping (600‑ton Heavy Press Force) from Guowang delivers 550t of rated die-cutting pressure across 0.1–3mm board and ≤4mm corrugated, with 6-zone heating from 20–120°C, a three-way partial waste stripping structure, and ≤±0.075mm precision at 6,000 sheets/hour. If you're specifying a heavy-duty hot die-cutter for premium liquor boxes, cosmetic cartons, or laminated packaging, send us your board thickness and emboss requirements — we'll help you confirm the right configuration before you order.
