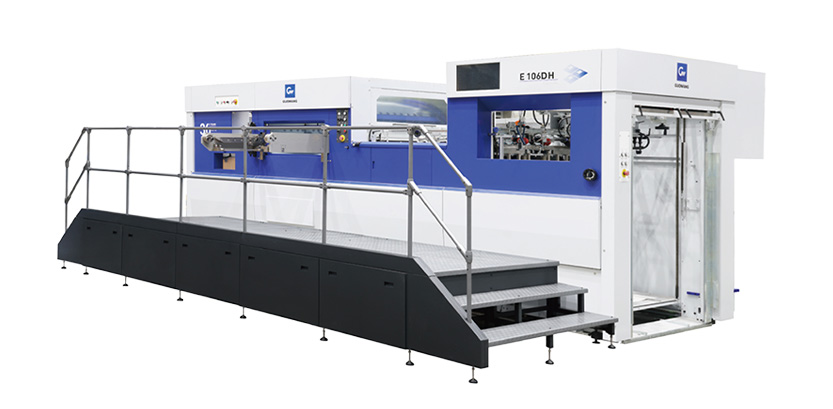

E106DHQ Heavy‑duty Hot Die‑cutting Machine with Partial Waste Stripping (600‑ton Heavy Press Force)

Paper feeding section

Feeder Head: High-quality feeder featuring 4 suction cups for pickup and 4 for delivery, ensuring stable and rapid paper feeding.

Pre-loading & Non-stop Feeding: Pre-loading system allows for continuous feeding without stopping the machine; maximum stack height of 1600mm (including pallet).

Front Lay Detection: Photoelectric sensors detect whether the sheet has accurately reached the front lay position.

Side Lay Detection: Precision mechanical action triggers a sensor switch to verify sheet positioning (compatible with all print colors).

Vacuum Pump: High-quality German-made Becker pump for extended service life.

Push/Pull Convertible Side Lay: Easily switchable to accommodate various paper weights.

Feeder Control Panel: Convenient operation at the feeder station.

Mechanical Double-Sheet Detection: Uses sheet thickness to trigger a mechanical switch and detect double-sheet feeding.

Anti-Crush Photoelectric Safety Device: Prevents operator injury from the presser foot during machine operation.

Single-Point Electromagnetic Clutch: Engages or disengages the linkage between the feeder/conveyor belts and the main machine, facilitating easier setup and testing.

Die-cutting section

Pneumatic locking for die-cutting chase and lower plate: Uses a pneumatic cylinder-based quick-locking mechanism to prevent operational errors caused by improper locking of the upper and lower chases.

Centerline alignment system: Employs a centerline-based quick-positioning method for the die-cutting chase, eliminating the need for operators to manually correct for positional offsets during installation.

Pre-stretched high-quality chains: Chains undergo 72 hours of high-speed simulated operation to ensure superior dimensional stability and precision.

Servo pressure control system: Utilizes a servo system for precise, computer-controlled pressure adjustment with an accuracy of 0.01mm.

Pneumatic clutch system: Ensures faster braking and more stable machine operation.

Torque limiter: Disengages during abnormal conditions to protect the machine from severe damage.

Indexing gearbox drive: An optimized indexing gearbox extends the machine's service life and improves the positioning accuracy of the gripper bars.
Pneumatic lower plate lifting: Uses pneumatic cylinders to lift the lower plate away from the moving platen, making insertion and removal easier and less labor-intensive.

Main drive automatic lubrication and cooling system: Combines oil-bath and drip lubrication to keep the main drive mechanism constantly lubricated, ensuring stable die-cutting pressure and extending the machine's service life.

Automatic chain lubrication system: Allows for programmable lubrication intervals and oil volumes, extending chain life and ensuring smoother operation.

Automatic cam lubrication system: Allows for programmable lubrication intervals and oil volumes, extending cam life and ensuring smoother operation.

Main motor: High-quality German motor (Inmunda/Lenze) for superior performance stability.

Sheet drop detection: Uses photoelectric sensors to detect sheets falling into the machine interior, preventing damage to the cutting die.

Bidirectional quick-lock function: Employs a pneumatic bidirectional quick-locking mechanism to prevent operational errors caused by improper chase locking.

Pneumatic safety door for die-cutting section: Features a transparent acrylic door, allowing real-time monitoring of the platen's operating status.

Abolished Qing-era sections

Three-way waste removal structure: Utilizes a top, middle, and bottom frame configuration to perform the waste removal function.

Center-line alignment system: Employs a center positioning system for both the top and middle waste removal frames, enhancing setup efficiency.

Quick-mounting device: Increases the efficiency of mounting the middle waste removal frame.

Pneumatic quick-lift system for the top waste removal frame: Uses a pneumatic cylinder mechanism for rapid raising and lowering of the top frame, improving setup efficiency and reducing operator physical strain.

Paper delivery section

Non-stop delivery: Equipped with an auxiliary delivery mechanism to enable continuous operation without stopping the machine.

Bi-directional air blast for delivery: Utilizes bi-directional air blasts to ensure rapid and neat paper alignment.

Mechanical paper-pressing assist: Employs a mechanical paper-pressing function to facilitate efficient paper stacking.

Photoelectric safety protection for the delivery lift: Prevents the operator's feet from being crushed by the lifting platform, thereby enhancing safety.
