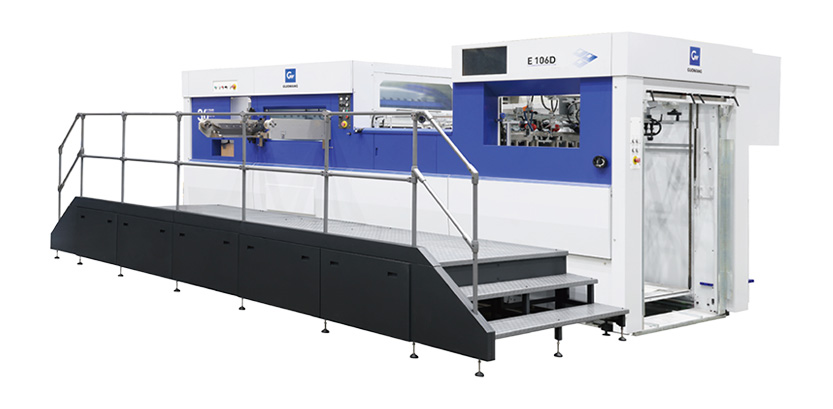

R106Q Die‑cutting Machine with Partial Waste Stripping (Double Cam Opening)

Paper feeding section

Feeder Head: High-quality feeder featuring 4 suction cups for pickup and 4 for delivery, ensuring stable and rapid paper feeding.

Pre-loading Device (Non-stop Feeding): Allows for paper pre-loading without stopping the feeder; maximum stack height of 1600mm (including pallet).

Front Lay Registration Detection: Uses photoelectric switches to verify that the sheet has accurately reached the front lay position.

Side Lay Registration Detection: Uses precise mechanical action to trigger a sensor switch, confirming the sheet is correctly positioned (compatible with all print colors).

Vacuum Pump: High-quality German-made Becker pump for extended service life.

Push/Pull Convertible Side Lay: Easily switchable to accommodate different paper weights.

Feeder Control Panel: Convenient operation at the feeder station.

Mechanical Double-Sheet Detection: Uses sheet thickness to trigger a mechanical switch, detecting the presence of double-fed sheets.

Single-Point Electromagnetic Clutch: Engages or disengages the linkage between the feeder/conveyor belts and the main machine, facilitating easier setup and testing.

Anti-Crush Safety Device: Photoelectric protection to prevent injury from the presser foot during operation.

Die-cutting section

Pneumatic locking for chase and lower plate: Uses a pneumatic quick-locking mechanism to prevent operational errors caused by improper locking of the upper and lower chases.

Centerline alignment system: Employs a centerline-based quick positioning method for the die-cutting chase, eliminating the need for operators to manually correct for positional offsets during installation.

Pre-stretched high-quality chains: Chains undergo 72 hours of high-speed simulated operation to ensure superior precision and stability.

Servo pressure control system: Utilizes a servo system for precise, computer-controlled pressure regulation with an adjustment accuracy of 0.01mm.

Pneumatic clutch system: Ensures faster braking and more stable machine operation.

Torque limiter: Disengages during abnormal conditions to protect the machine from severe damage.

Indexing gearbox drive: An optimized indexing gearbox extends equipment lifespan and improves gripper bar positioning accuracy.

Pneumatic lower plate lifting: Uses pneumatic cylinders to lift the lower plate away from the moving platen, making insertion and removal easier and less strenuous.

Main drive automatic lubrication and cooling system: Combines oil-bath and drip lubrication to keep the main drive mechanism constantly lubricated, ensuring stable die-cutting pressure and extending equipment life.

Automatic chain lubrication system: Allows for programmable lubrication intervals and volumes, extending chain life and ensuring smoother operation.

Automatic cam lubrication system: Allows for programmable lubrication intervals and volumes, extending cam life and ensuring smoother operation.

Main motor: High-quality German motor (Inmunda) for superior performance stability.

Sheet drop detection: Uses photoelectric sensors to detect sheets falling into the machine interior, preventing damage to the cutting die.

Bidirectional quick-lock function: Uses a pneumatic bidirectional locking mechanism to prevent operational errors caused by improper chase locking.

Pressure stabilization function: Computer-controlled, high-precision pressure stabilization maintains consistent operating pressure, effectively extending the service life of the cutting die.

Abolished Qing-era sections

Three-way waste removal structure: Utilizes upper, middle, and lower waste removal frames to perform the waste removal function.

Center-line alignment system: Employs a center positioning system for both the upper and middle waste removal frames, enhancing setup efficiency.

Quick-mounting device: Increases the efficiency of mounting the middle waste removal frame.

Pneumatic quick-lift system for the upper waste removal frame: Uses a pneumatic cylinder mechanism for rapid raising and lowering of the upper frame, improving setup efficiency and reducing operator physical strain.

Paper delivery section

Non-stop delivery: Equipped with an auxiliary delivery mechanism to enable continuous operation without stopping the machine.

Bi-directional air blast for delivery: Uses bi-directional air blasts to ensure rapid and neat sheet alignment.

Mechanical sheet hold-down assist: Utilizes a mechanical hold-down function to facilitate efficient sheet stacking.

Photoelectric safety protection for the delivery lift: Prevents the operator's feet from being crushed by the lifting platform, ensuring enhanced safety.

Motorized delivery brush: Allows for quick adjustment of the delivery brush, reducing setup time.

Motorized auxiliary delivery: Features a motorized roller-blind style auxiliary delivery mechanism for rapid sheet catching and reduced labor intensity.

Downward suction system: Employs a downward suction device at the delivery section to ensure sheets settle flat and evenly.
