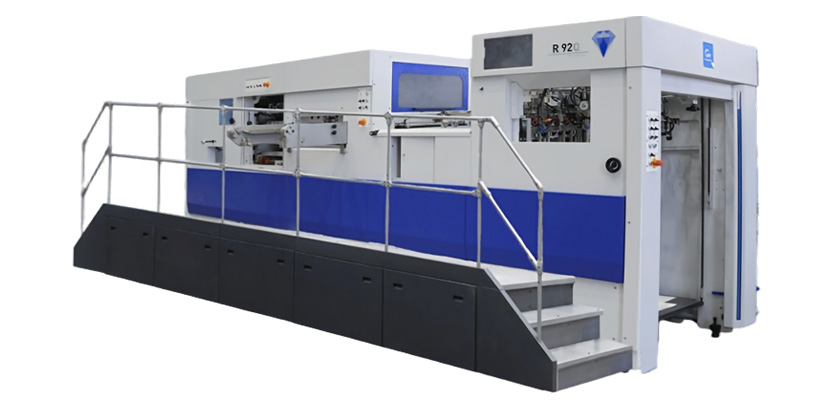

R92Q Die‑cutting Machine with Partial Waste Stripping

Paper feeding section

Feeder Head: High-quality feeder featuring 4 suction cups for pickup and 4 for delivery, ensuring stable and rapid paper feeding.

Pre-loading Device: Enables non-stop paper feeding; maximum stack height is 1,550 mm (including pallet).

Front Lay Registration Detection: Uses photoelectric sensors to verify that the sheet has accurately reached the front lay position.

Side Lay Registration Detection: Uses precise mechanical action to trigger a sensor, confirming the sheet is correctly positioned (compatible with all print colors).

Vacuum Pump: High-quality German-made Becker pump for extended service life.

Push/Pull Convertible Side Lay: Flexibly switches between modes to accommodate different paper weights.

Mechanical Double-Sheet Detection: Uses sheet thickness to trigger a mechanical switch, detecting the presence of double-fed sheets.

Anti-Crush Safety Device: Photoelectric protection to prevent operators' feet from being crushed during machine operation.

Single-Point Electromagnetic Clutch: Engages or disengages the feeder and feed belts from the main machine, facilitating easier setup and testing.

Die-cutting section

Pneumatic locking for chase and bottom plate: Uses a pneumatic quick-locking mechanism to prevent operational errors caused by improper locking of the upper and lower chases.

Centerline alignment system: Employs a quick-positioning centerline method for mounting the die-cutting chase, eliminating the need for operators to worry about positional misalignment during installation.

High-quality gripper bars: High-strength gripper bars designed for extended service life.

Pre-stretched high-quality chains: Chains undergo 72 hours of high-speed simulated operation to ensure superior precision and stability.

Torque limiter: Disengages during abnormal conditions to protect the machine from severe damage.

Indexing gearbox drive: Optimized indexing gearbox extends equipment lifespan and improves gripper bar positioning accuracy.

Pneumatic chase lifting: Enhances operational convenience.

Main drive automatic lubrication and cooling system: Combines oil-bath and drip lubrication to keep the main drive mechanism constantly lubricated, ensuring stable die-cutting pressure and extending equipment life.

Automatic chain lubrication system: Programmable lubrication intervals and oil volume ensure automatic lubrication, extending chain life and ensuring smoother operation.

Main motor: High-quality German motor (Inmunda) for superior performance stability.

Ductile iron honeycomb plate: Ductile iron material offers enhanced stability, higher strength, and superior corrosion resistance.

Automatic pressure release (no-sheet detection): Automatically releases pressure when the system detects no sheet entering the main unit, preventing foil transfer onto the bottom die.

Sheet drop detection: Photoelectric sensors detect if a sheet has fallen inside the main unit, preventing equipment damage.

Chase area safety door: Manual door made of transparent acrylic (Plexiglass).

Servo pressure control system: Uses a servo system for precise, computer-controlled pressure regulation with an adjustment accuracy of 0.01mm.

Pressure stabilization function: Computer-controlled, high-precision pressure stabilization maintains consistent pressure, effectively extending the service life of the cutting die.

Paper delivery section

Non-stop paper delivery: Equipped with an auxiliary delivery mechanism to enable continuous operation without stopping the machine.

Automatic auxiliary delivery platform: An electric roller-blind style auxiliary delivery mechanism ensures rapid sheet reception and reduces manual labor.

Bi-directional air blast for delivery: Uses bi-directional air blasts to facilitate rapid and neat sheet alignment.

Photoelectric anti-crush protection: Prevents operators' feet from being crushed by the lifting platform, enhancing safety.

Mechanical auxiliary sheet pressing: Employs a mechanical pressing function to ensure efficient paper delivery.

Adjustable auxiliary delivery brushes: Improve the stability of the paper delivery process.
