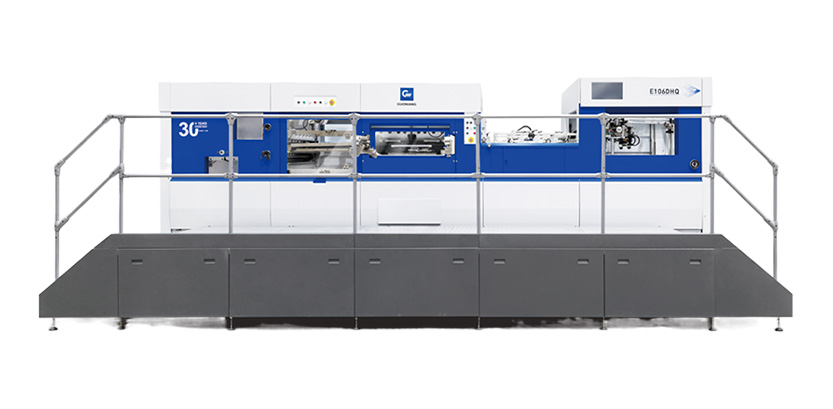

E106D Heavy‑duty Die‑cutting Machine

Paper feeding section

Feeder Head: High-quality feeder featuring 4 suction cups for pickup and 4 for delivery, ensuring stable and rapid paper feeding.

Pre-loading Device (Non-stop Feeding): Allows for paper pre-loading without stopping the feeder; maximum stack height of 1600mm (including pallet).

Front Lay Registration Detection: Uses photoelectric sensors to verify that the sheet has accurately reached the front lay position.

Side Lay Registration Detection: Uses precise mechanical action to trigger a sensor switch, confirming the sheet is correctly positioned (compatible with all print colors).

Vacuum Pump: High-quality German-made Becker pump for extended service life.

Push/Pull Convertible Side Lay: Easily adjustable to accommodate various paper weights.

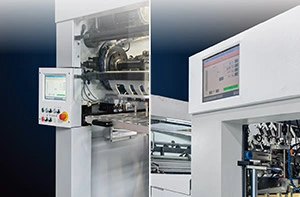

Feeder Control Panel: Convenient operation of the paper feeding unit.

Mechanical Double-Sheet Detection: Uses sheet thickness to trigger a mechanical switch, detecting the presence of double-fed sheets.

Single-Point Electromagnetic Clutch: Engages or disengages the linkage between the feeder/conveyor belts and the main machine, facilitating easier setup and testing.

Anti-Crush Photoelectric Safety Device: Prevents injury by detecting obstructions (such as hands or feet) near moving parts.

Die-cutting section

Pneumatic locking for chase and lower plate: Uses a pneumatic cylinder-based quick-locking mechanism to prevent operational errors caused by improper locking of the upper and lower chases.

Centerline alignment system: Employs a centerline-based quick-positioning method for the die-cutting chase, eliminating the need for operators to manually correct for positional offsets during installation.

Pre-stretched high-quality chains: Chains undergo 72 hours of high-speed simulated operation to ensure superior dimensional stability and precision.

Servo pressure control system: Utilizes a servo system for precise, computer-controlled pressure adjustment with an accuracy of 0.01mm.

Pneumatic clutch system: Ensures faster braking and more stable machine operation.

Torque limiter: Disengages in the event of an anomaly to protect the machine from severe damage.

Indexing gearbox drive: An optimized indexing gearbox extends the machine's service life and improves the positioning accuracy of the gripper bars.

Pneumatic lower plate lifting: Uses pneumatic cylinders to lift the lower plate away from the moving platen, making insertion and removal easier and less strenuous.

Main drive automatic lubrication and cooling system: Combines oil-bath and drip lubrication to keep the main drive mechanism constantly lubricated, ensuring stable die-cutting pressure and extending equipment lifespan.

Automatic chain lubrication system: Allows for programmable lubrication intervals and oil volumes, extending chain life and ensuring smoother operation.

Automatic cam lubrication system: Allows for programmable lubrication intervals and oil volumes, extending cam life and ensuring smoother operation.

Main motor: High-quality German motor (Inmota) for superior performance stability.

Sheet drop detection: Uses photoelectric sensors to detect sheets falling into the machine interior, preventing damage to the cutting die.

Bidirectional quick-lock function: Employs a pneumatic bidirectional quick-locking mechanism to prevent operational errors caused by improper chase locking. Die-cutting section safety door: Features a transparent acrylic door, allowing real-time monitoring of the platen's operating status.

Independent temperature control zones: Utilizes six temperature zones with independent control and a precision of ±2°C.

Ductile iron honeycomb platen: Ductile iron offers superior stability, higher strength, and enhanced corrosion resistance.

Oil cooling unit: Lowers the temperature of the main unit's lubricating oil to ensure stable lubrication performance.

Paper delivery section

Non-stop paper delivery: Equipped with a secondary delivery mechanism to enable continuous operation without stopping the machine.

Bi-directional air blast for delivery: Utilizes bi-directional air blasts to ensure rapid and neat paper alignment.

Mechanical paper-pressing assist: Employs a mechanical pressing function to facilitate efficient paper stacking.

Photoelectric safety protection for the delivery lift: Prevents the operator's feet from being crushed by the lifting platform, ensuring enhanced safety.
