Does a Hot Foil Stamping Machine Really Need 20 Heating Zones?

You're running a premium packaging line—cosmetic boxes, cigarette cartons, luxury gift boxes. Foil stamping quality depends on heat. Too little, and the foil doesn't adhere. Too much, and the paper scorches. A Hot Foil Stamping Machine with independent heating zones controls that heat precisely across the sheet. The E106Y Hot-stamping & Die-cutting Machine uses 20 separately controlled temperature zones to maintain consistent foil transfer from edge to edge. This article explains why zone control matters more than total power, how the 20-zone system delivers energy savings, and what else to check before specifying an integrated stamping and die-cutting platform.

What Determines Foil Stamping Quality on Premium Packaging?

Foiling is a heat-transfer process. The foil's adhesive layer activates at a specific temperature, and the image transfers under pressure. If the temperature varies across the sheet, some areas over-stamp while others under-stamp. The result is uneven gloss, incomplete transfer, or scorched paper. Traditional stamping machines use a single heating element or a small number of zones, leaving hot spots and cold spots across the platen. The E106Y addresses this with 20 independently controlled zones.

The Problem With Uneven Heat Distribution

A large platen—up to 1040×740mm on this machine—doesn't heat uniformly. The edges lose heat faster than the center. The foil draws heat away as it transfers. Without zone control, operators compensate by increasing overall temperature, which risks scorching the paper and wasting energy. The result is a narrow operating window that's difficult to maintain at production speed.

How Independent Zone Control Solves It

Twenty zones allow the operator to set different temperatures for different areas of the platen. If the edges run cooler, their zones receive more power. If the center overheats, its zones receive less. The system maintains uniform foil transfer across the entire sheet, regardless of image placement. Imported temperature components hold accuracy within ±1°C, and the independent control means only the zones that are actively stamping draw full power—reducing energy consumption.

How 20-Zone Heating Changes Stamping Consistency

With 20 zones, the E106Y can preheat the platen evenly before production begins, shortening the waiting time between jobs. During production, the system automatically calculates foil consumption, and the foil unwinding bracket includes a break detector and remaining length alarm. The 15-inch and 10.4-inch HMIs control feeding, delivery, and stamping, cutting foil waste by 50% with optional preheating. The machine handles cardboard 0.1-3mm, corrugated paper up to 4mm, and white cardboard 90-2000g/m². Maximum stamping pressure reaches 550 tons, driven by Yaskawa servo control.

Key Specifications That Define the E106Y

Machine Construction and Tolerance

Five core parts of the machine body are machined by Mitsubishi double-station five-face equipment. Imported hydraulic fixtures reduce deformation with total tolerance controlled within ±0.01mm. The main unit adopts a worm gear drive featuring high efficiency, reliable self-locking, and an ultra-large reduction ratio. SMC pneumatic cylinders lock die frames and bottom plates firmly, preventing improper installation and losses caused by manual operation errors.

Feeding and Delivery Performance

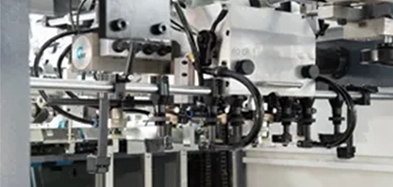

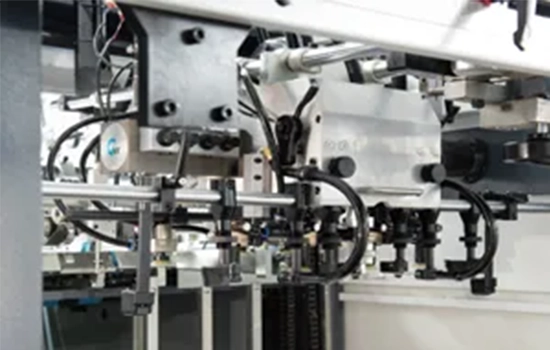

The self-developed 4-suction 4-feed feeder delivers stable fast paper feeding for various stocks, with 1600mm pre-stacking enabling non-stop operation. Six imported front drive belts matched with German cross steel plates ensure flat and smooth paper transportation. The delivery unit supports non-stop auto stack lowering with a 10.4-inch screen and marker inserter; conveyor and anti-static devices are optional.

Where Dual-Function Finishing Delivers the Best Returns

The E106Y serves packaging and printing companies seeking the ultimate in hot stamping results and consistent production capacity. Cosmetic packaging and luxury gift boxes demand flawless metallic finishes and precise die-cut shapes. The ±0.01mm core tolerance and 550-ton pressure ensure that brand logos and decorative elements align precisely with the printed design. The dual-function platform produces the final blank without a separate die-cutting operation. Cigarette pack and anti-counterfeiting label production requires hologram application and diffraction stamping for complex structured graphics. The E106Y supports hologram application and diffraction stamping, making it suitable for these security-sensitive applications. The 20-zone temperature control maintains consistent stamping quality across complex designs. Electronics packaging often uses foil stamping for brand differentiation and product information. The E106Y handles the range of paper and board stocks used in these applications, from lightweight inserts to heavy packaging board.

Cosmetic and Luxury Gift Box Production

Cosmetic packaging and luxury gift boxes demand flawless metallic finishes and precise die-cut shapes. The ±0.01mm core tolerance and 550-ton pressure ensure that brand logos and decorative elements align precisely with the printed design. The dual-function platform produces the final blank without a separate die-cutting operation.

Cigarette and Anti-Counterfeiting Packaging

Cigarette pack and anti-counterfeiting label production requires hologram application and diffraction stamping for complex structured graphics. The E106Y supports hologram application and diffraction stamping, making it suitable for these security-sensitive applications. The 20-zone temperature control maintains consistent stamping quality across complex designs.

Electronics and Premium Packaging

Electronics packaging often uses foil stamping for brand differentiation and product information. The E106Y handles the range of paper and board stocks used in these applications, from lightweight inserts to heavy packaging board.

Common Questions About Integrated Stamping and Die-Cutting Machines

Q: How does the machine handle foil waste reduction?

A: The 15-inch and 10.4-inch HMIs control feeding, delivery, and hot stamping, cutting foil waste by 50% with optional preheating to save waiting time. The system automatically calculates foil consumption, and the foil unwinding bracket includes a foil break detector and remaining length alarm.

Q: What maintenance does the heating system require?

A: The 20-zone heating system uses imported temperature components with ±1°C accuracy. Routine maintenance includes checking thermocouple connections, verifying zone temperature accuracy, and inspecting heating elements for wear. The independent zone control allows testing individual zones without disrupting production.

Q: Can the machine be configured for different production needs?

A: Yes. The standard configuration includes 3 foil take-up axes. An optional 6-axis servo WFR-280 foil rewinder with 10.4-inch touch screen is available for higher-volume production. Other options include honeycomb preset frame for the hot stamping section, precise holographic positioning system, and conveyor with anti-static device for the delivery unit.

Q: What certifications and standards does the machine meet?

A: GUOWANG machines meet the rigorous safety standards of Germany's TÜV. The machine delivers micron-level precision with ±0.15mm accuracy verified by hexagon inspection.

Request a Dual-Function Finishing Configuration

A Hot Foil Stamping Machine with 20-zone independent temperature control, 7500 sheets/hour die-cutting speed, and dual stamping/die-cutting capability is the practical choice for packaging converters who need premium finishing without a second machine. The E106Y Hot-stamping & Die-cutting Machine from GUOWANG delivers 7500 sheets/hour die-cutting speed, 550 tons stamping pressure, 20 independent temperature zones with ±1°C accuracy, ±0.01mm core tolerance, fast changeover between stamping and die-cutting modes, 19-inch touch screen control, and compatibility with cardboard, corrugated paper, and white cardboard.

Whether you're producing cosmetic packaging, cigarette cartons, luxury gift boxes, or anti-counterfeiting labels, this machine offers the speed, precision, and dual-function capability that modern packaging operations demand. With the global market for integrated stamping and die-cutting machines growing steadily, investing in proven technology ensures long-term productivity and support.

Contact GUOWANG for an integrated stamping and die-cutting configuration assessment → their team can help you select the right model, options, and setup for your specific substrates and production targets. Get a Hot Foil Stamping Machine that stamps and die-cuts in one pass—so your production line runs shorter and your finishing quality stays flawless.
