Can an Automatic Die Cutting Machine Handle Waste Stripping Too?

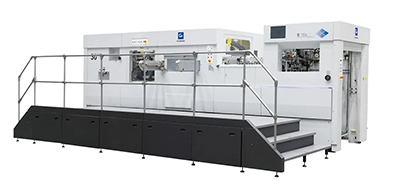

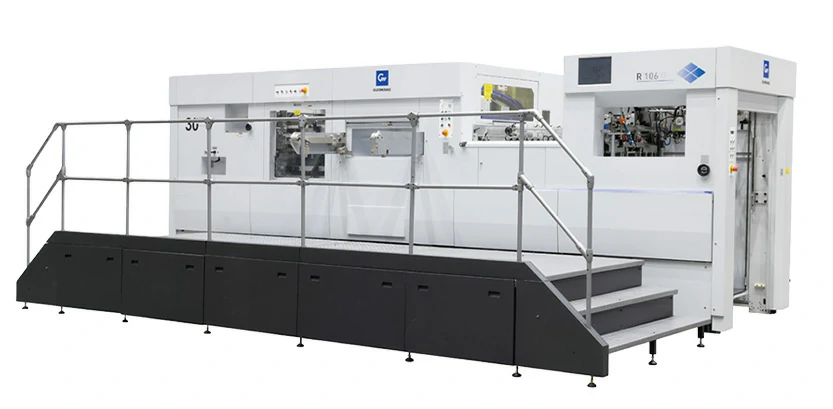

You're running a packaging production line, and you know the drill—die-cut the sheet, then move it to a separate stripping station to remove the waste. Two machines, two operators, double the floor space. An automatic die cutting machine that integrates waste stripping changes that equation entirely. The R106Q Die‑cutting Machine with Partial Waste Stripping (Double Cam Opening) was engineered to combine both operations in a single pass—delivering die‑cut and stripped sheets ready for folding and gluing. This article walks through how the double cam opening mechanism enables reliable waste removal, what makes the R106Q different from standalone die-cutters, and whether the 7500 sheets/hour speed and 300t pressure justify the investment for your operation.

---

First Questions About Die-Cutting With Waste Stripping

Two Practical Concerns—Answered Directly

Q: What exactly does "partial waste stripping" mean?

A: Partial waste stripping removes only selected waste areas from the sheet—typically the interior cutouts and bridges—while leaving the outer skeleton intact until it reaches the delivery section. This targeted approach reduces stress on the sheet and enables higher-speed operation.

Q: What sheet sizes and materials can the R106Q handle?

A: The machine handles sheet sizes from 450×370mm up to 1060×760mm. It processes paperboard from 0.1-3mm, corrugated board up to 4mm, and white cardstock from 90–2000 g/m².

---

The Integration Argument — Why Combine Die-Cutting and Stripping?

Traditional packaging workflows separate die-cutting and waste stripping into two distinct operations. The die-cutter creates the shape; a separate stripping press removes the waste. This two-machine approach consumes floor space, requires additional labor, and introduces handling damage. The R106Q eliminates the separate stripping step by integrating waste removal directly into the die-cutting cycle. Sheets exit the machine die‑cut, stripped, and stacked—ready for the next production stage.

What the Double Cam Opening Actually Does

The double cam opening mechanism provides the force and timing needed to remove waste reliably at high speed. It precisely controls gripper rows to clear mouth waste, solving cleaning troubles and upgrading die-cutting efficiency and product quality. This isn't a simple add-on—it's an engineered system that coordinates with the main drive to ensure waste removal happens at exactly the right moment in each cycle.

One-Pass Production, Lower Labor Intensity

With integrated stripping, the machine produces well-stacked, counted batches instantly, greatly reducing workload and associated costs. Operators don't need to transfer sheets between machines or manually remove waste—the machine handles it all in one continuous cycle.

---

Speed and Pressure — The Performance Numbers That Matter

The R106Q delivers a maximum die-cutting speed of 7500 sheets per hour and a maximum pressure of 300 tons. These two numbers define what the machine can handle:

7500 Sheets/Hour — What That Means for Your Line

At 7500 sheets per hour, the machine processes over 125 sheets per minute. For a typical packaging run, that translates to thousands of finished blanks per shift—all die‑cut and stripped in a single pass. The speed is supported by a servo pressure control system with adjustment accuracy of 0.01mm, ensuring that high speed doesn't come at the cost of precision.

300 Tons of Pressure — For Thick and Complex Materials

The 300t maximum pressure handles demanding materials—corrugated board up to 4mm thick, paperboard up to 3mm, and heavy cardstock up to 2000 g/m². For converters running a mix of lightweight folding cartons and heavy corrugated packaging, this pressure range covers the full spectrum.

---

Precision Engineering — What Makes the R106Q Accurate

Die-cutting precision depends on the mechanical integrity of the machine. The R106Q is built around several engineering choices that ensure consistent accuracy:

Five Core Parts Machined to ±0.01mm

Five core parts of the machine body are machined by Mitsubishi double-station five-face equipment. Imported hydraulic fixtures reduce deformation with total tolerance controlled within ±0.01mm. This level of machining precision ensures that the platen remains flat and parallel across millions of cycles.

Aerospace-Grade Gripper Bars

The gripper bars are made from aerospace aluminum with ±0.05mm flatness, verified by CMM inspection. Imported gripper blades ensure ±0.25mm length tolerance and a 3-year service life. Precise gripper control is essential for maintaining registration—especially on multi-up jobs where any misalignment compounds across the sheet.

Servo Pressure Control With 0.01mm Adjustment

The servo pressure control system allows computer-controlled pressure regulation with 0.01mm adjustment accuracy. This means you can dial in exactly the right pressure for each job—reducing die wear on light materials while delivering full force for heavy board.

---

Waste Stripping System — Three-Way Removal for Complex Jobs

The R106Q's waste stripping system uses a three-way waste removal structure with upper, middle, and lower waste removal frames:

Upgraded Active Upper Stripping Frame

The upgraded active upper stripping frame suits complex multi-up products. For jobs with multiple cavities per sheet—typical in pharmaceutical and food packaging—the active frame ensures that every waste piece is removed, regardless of its position on the sheet.

Fixed Middle Frame and Movable Rails

The fixed middle frame and movable rails prevent scrap carry-out, ensuring stable, efficient waste stripping. This design prevents waste pieces from being carried back into the die area, where they could cause jams or damage the cutting die.

Centerline Alignment for Quick Setup

The centerline alignment system employs a center positioning system for both the upper and middle waste removal frames, enhancing setup efficiency. Quick-mounting devices increase the efficiency of mounting the middle waste removal frame, reducing changeover time between jobs.

---

Technical Specifications — R106Q at a Glance

Parameter	R106Q
Max. Sheet Size	1060×760mm
Min. Sheet Size	450×370mm
Max. Die-cutting Area	1045×745mm
Max. Speed	7500 sheets/hour
Max. Pressure	300t
Paperboard Thickness	0.1-3mm
Corrugated Board Thickness	≤4mm
Cardstock Range	90–2000 g/m²
Gripper Margin	9-17mm
Feeder Pile Height	1550mm (including pallet)
Delivery Pile Height	1350mm (including pallet)
Die-cutting Chase Inner Dimensions	1100×770mm
Air Supply	6-8bar; 200L/min
Main Motor Power	11kW
Max. Total Power	20kW
Total Weight	18.5 TON
Overall Dimensions (L×W×H)	6330×4250×2430mm

Automation Features That Reduce Operator Intervention

The R106Q is equipped with multiple automated systems that minimize manual adjustments and improve production consistency:

Pneumatic Upper and Lower Lock

SMC pneumatic cylinders lock die frames and bottom plates firmly, preventing improper installation and losses caused by manual operation errors. This eliminates a common source of setup variability.

Pneumatic Lifting Device for Upper Waste Stripping Frame

The pneumatic lifting device automatically lifts and resets the upper stripping frame instead of manual work, cutting labor intensity, shortening adjustment time, and boosting productivity.

Automatic Lubrication Systems

The main drive features an automatic lubrication and cooling system combining oil-bath and drip lubrication. Separate automatic chain lubrication and cam lubrication systems allow programmable intervals and volumes. These systems extend component life and ensure smooth operation across long production runs.

Non-Stop Feeding and Delivery

The pre-loading device allows paper pre-loading without stopping the feeder, with a maximum stack height of 1600mm. The non-stop delivery system uses an auxiliary delivery mechanism to enable continuous operation without stopping the machine.

---

Applications — Where Integrated Die-Cutting and Stripping Excels

The R106Q serves multiple packaging segments where precision and efficiency are critical:

Folding Cartons for Food and Beverage

Food and beverage cartons require clean cuts and complete waste removal for reliable folding and gluing. The integrated stripping ensures that every carton blank is free of interior waste before it reaches the folder-gluer.

Pharmaceutical and Healthcare Packaging

Pharmaceutical packaging demands tight tolerances and consistent quality. The R106Q's ±0.01mm machining tolerance and servo pressure control deliver the precision that regulatory-compliant packaging requires.

Corrugated Packaging and Displays

For corrugated board up to 4mm thick, the 300t pressure provides the force needed for clean cutting through heavy materials. The partial waste stripping system handles the complex waste patterns typical of corrugated displays and point-of-purchase packaging.

Premium Packaging and Specialty Board

For high-end packaging on heavy cardstock (up to 2000 g/m²), the machine delivers the pressure and precision needed for embossing and intricate die-cutting.

---

Straight Answers About Die-Cutting With Waste Stripping

Q: What's the difference between partial waste stripping and full stripping?

A: Partial waste stripping removes selected waste areas while leaving the outer skeleton intact until delivery. This reduces stress on the sheet during high-speed operation. Full stripping removes all waste in one pass but may require lower speeds for complex layouts.

Q: How long does it take to change over between jobs?

A: Changeover time depends on the complexity of the die and stripping tools. The centerline alignment system and quick-mounting devices for waste removal frames significantly reduce setup time compared to traditional systems.

Q: What safety features are included?

A: The machine includes photoelectric safety protection for the delivery lift to prevent operator injury, an anti-crush safety device for the presser foot, and a torque limiter that disengages during abnormal conditions to protect the machine from severe damage.

Q: What support is available after purchase?

A: GUOWANG provides 24/7 online technical support with over 95% fault diagnosis accuracy, on-site operation and maintenance training, a global spare parts inventory network with rapid response within 72 hours, and hardware/software upgrade solutions tailored to customer production capacity requirements.

---

Request a Die-Cutting Machine With Waste Stripping Configuration

An automatic die cutting machine that integrates waste stripping in a single pass is the practical choice for converters who need to reduce floor space, labor, and handling damage. The R106Q delivers 7500 sheets/hour maximum speed, 300t maximum pressure, sheet sizes from 450×370mm to 1060×760mm, material compatibility from 0.1mm paperboard to 4mm corrugated board, double cam opening for precise waste removal, three-way waste stripping structure for complex multi-up jobs, servo pressure control with 0.01mm adjustment accuracy, and ±0.01mm machining tolerance on five core components.

Whether you're producing folding cartons, pharmaceutical packaging, corrugated displays, or premium specialty board, this machine offers the integration, precision, and automation that modern packaging operations demand. With non-stop feeding and delivery, automatic lubrication systems, and comprehensive after-sales support, it's built for consistent, high-output performance across diverse production runs.

Contact GUOWANG for a die-cutting machine configuration assessment → their team can help you select the right options, stripping tools, and automation features for your specific substrates, layouts, and production targets. Get a machine that cuts and strips in one pass—so your packaging line runs faster, with less waste and fewer hands.
