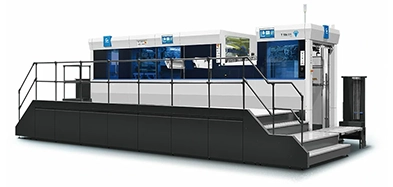

Can One Machine Replace Die-Cutting and Waste Stripping?

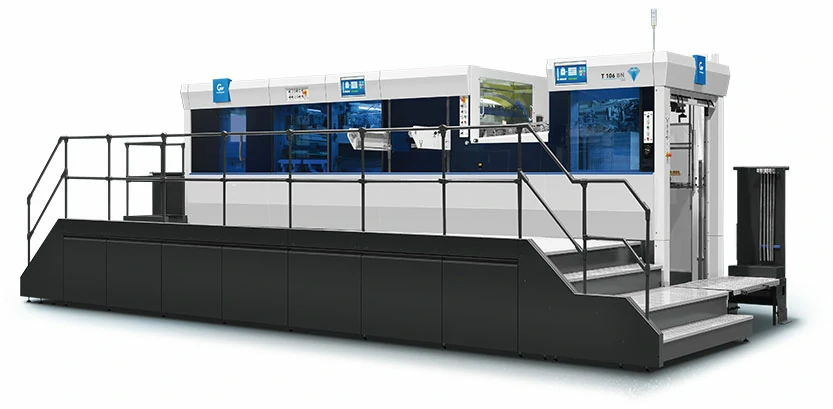

You're running a packaging finishing line — folding cartons, corrugated boxes, or premium packaging. The process traditionally requires two separate operations: die-cutting to shape the blanks, then waste stripping to remove the scrap. An automatic die cutting machine with integrated full waste stripping consolidates both operations into a single pass — feeding sheets, die-cutting, stripping waste, and delivering finished blanks in one continuous flow. The T106BN is a full waste die cutting machine designed for exactly this purpose — handling paperboard from 90-2000g/m² and corrugated board up to 4mm at speeds up to 7,500 sheets per hour. This guide covers what makes a full waste die cutting machine a production workhorse — from speed and precision to feeding, stripping, and delivery.

Die-Cutting and Waste Stripping – Two Operations, One Pass, One Machine

Traditional die-cutting production requires two separate operations: sheets are first cut on a die-cutting press, then transferred to a waste stripping machine to remove scrap. Each transfer adds handling time, labor, and the risk of misalignment. The T106BN integrates die-cutting and waste stripping into a single machine. Sheets feed from the pile, pass through the die-cutting unit where they are cut to shape, then move directly to the stripping unit where waste is removed. Finished blanks exit the machine ready for folding and gluing — without intermediate handling.

The Integrated Process Flow

Sheets are fed from the feeder into the die-cutting unit, where 350 tons of pressure cuts them to shape. They then move directly into the stripping unit, where waste is removed. Finished blanks are delivered to the delivery pile. The entire process requires no manual intervention and no intermediate handling.

Flexible Operation for Different Job Types

The machine supports flexible switching between die-cutting only and combined die-cutting with waste stripping. Whether you need full waste stripping for complex packaging or simple die-cutting for straightforward jobs, one machine covers both.

7,500 Sheets/Hour, 350 Tons, ±0.075mm – The Numbers That Define Capacity and Quality

The T106BN delivers a maximum die-cutting speed of 7,500 sheets per hour, a maximum die-cutting pressure of 350 tons, and die-cutting precision of ≤±0.075mm. The maximum feeding sheet size is 1060×760mm, with a minimum of 400×350mm. The maximum die-cutting area is 1045×745mm. Main motor power is 18.5kW with a maximum total power consumption of 30kW. The machine weighs 23 tons.

Speed – What 7,500 Sheets/Hour Means for Production

At 7,500 sheets per hour, a single machine can process tens of thousands of sheets per shift. This throughput is sufficient to supply multiple downstream folding and gluing lines, making it suitable for large-scale packaging operations.

Precision – The Quality Standard

The ±0.075mm precision ensures every blank is cut to exact specifications. For pharmaceutical packaging, cosmetic cartons, and other applications where dimensional accuracy is critical, this level of precision is non-negotiable.

23 Tons of Cast Iron and 30kW of Power – Built for 24/7 Production

The T106BN is built with a QT600-7 ductile iron frame, weighing 23 tons. The heavy frame provides the rigidity required for high-precision die-cutting — absorbing vibration and maintaining accuracy at high speeds. The 18.5kW main motor and 30kW total power capacity provide ample power for continuous high-speed production.

Rigidity and Accuracy

During die-cutting, 350 tons of pressure is applied instantaneously to the sheet. Any flex in the frame would compromise cutting accuracy. The 23-ton rigid structure ensures every cut is made on a consistent plane.

24/7 Continuous Operation

The machine is designed for around-the-clock production. From feeding to delivery, all units are built with low-maintenance or long-life components to minimize unplanned downtime.

MABEG Feeding, Fuji Servo Registration, and Dual-Sheet Detection – Precision from the Start

The T106BN is equipped with a German MABEG feeder with a 4-suction, 4-feed configuration, ensuring stable feeding at high speeds. The pre-stack device supports non-stop sheet loading with a maximum pile height of 1600mm. Japanese Fuji servo motors control the front guide position, displayed and adjusted through a 19-inch touchscreen. Mechanical and ultrasonic double-sheet detection systems are switchable. The side guides can be switched between push and pull modes to accommodate different paper types.

4-Suction, 4-Feed for Stable High-Speed Feeding

The 4-suction, 4-feed configuration ensures stable sheet feeding even at maximum speed. Sheets decelerate automatically as they approach the front guides, enabling more precise positioning.

Double-Sheet Detection – Protection Against Damage and Waste

Two double-sheet detection systems — mechanical and ultrasonic — are switchable to accommodate different paper types. If a double sheet is detected, the system responds immediately, preventing damage to the die-cutting unit and reducing material waste.

Central Positioning, Pneumatic Locking, and Independent Waste Removal – How Stripping Works

The T106BN's upper and lower stripping frames both use a central positioning system. The upper frame can be switched between stripping frame and stripping plate configurations, secured with a pneumatic locking mechanism for quick and easy operation. A pneumatic lifting device on the upper stripping frame increases access space inside the machine. The independently driven waste removal conveyor ensures smooth waste discharge at both low and high speeds, with optional waste collection bins.

Central Positioning and Quick Changeover

The central positioning system on both upper and lower stripping frames ensures consistent tool positioning every time. The switchable design between stripping frame and stripping plate configurations enables rapid changeovers between different products.

Independent Waste Removal – No Clogging, No Blockages

The independently driven waste removal conveyor ensures waste material is discharged smoothly at both low and high speeds. The conveyor speed automatically matches the main machine speed, preventing accumulation or stretching.

Key Specifications at a Glance

What Production Managers Ask About Full Waste Die Cutting Systems

What is the die-cutting precision of the T106BN?
The machine delivers ≤±0.075mm die-cutting precision. This level of accuracy is suitable for pharmaceutical packaging, cosmetic cartons, and other applications with strict dimensional requirements.

What materials can the machine handle?
The machine handles 90-2000g/m² paperboard and ≤4mm corrugated board. From thin paperboard to thick corrugated, one machine covers most packaging materials.

What are the pressure and speed ratings?
Maximum die-cutting pressure is 350 tons and maximum speed is 7,500 sheets per hour. The 350-ton pressure is sufficient for deep embossing and thick board die-cutting.

What are the feeding and registration features?
The machine features a German MABEG feeder with 4-suction, 4-feed configuration. Japanese Fuji servo controls the front guides with adjustment via a 19-inch touchscreen. Mechanical and ultrasonic double-sheet detection systems are switchable.

How does the stripping system work?
The upper and lower stripping frames use a central positioning system. Pneumatic locking provides quick and secure fastening. An independently driven waste removal conveyor ensures smooth waste discharge at all speeds.

Get a Die Cutting System That Matches Your Materials and Volume Targets

Selecting a full waste die cutting machine comes down to three factors: material range (match your product types), speed (match your throughput requirements), and precision (match your quality standards). Contact Guowang Group for a customized quote → —their team can help you select the right T106BN configuration for your specific die-cutting and stripping needs.

Guowang Group is a manufacturer of post-press packaging equipment with a 200,000m² production facility and over 100 technical patents. The T106BN Full Waste Die Cutting Machine features a maximum speed of 7,500 sheets/hour, die-cutting precision of ≤±0.075mm, maximum feeding size of 1060×760mm, and maximum die-cutting pressure of 350 tons. The machine is equipped with a German MABEG feeder, Japanese Fuji servo control, and a central positioning stripping system, handling 90-2000g/m² paperboard and ≤4mm corrugated board. Guowang Group provides 24/7 online technical support (fault diagnosis accuracy >95%), on-site operation and maintenance training, a global spare parts network with response within 72 hours, and tailored hardware and software upgrades. Connect with Guowang Group to discuss your material specifications, production volume targets, and finishing requirements.
