| Category |
E106 |
| Paper size |
Min. 450×370mm
Max. 1060×740mm |
| Paper specifications |
Paperboard: 0.1–3 mm
Corrugated board: ≤4 mm
White cardstock: 90–2000 g/m² |
| Gripper margin |
7-17mm |
| Maximum die-cutting area |
1045×740mm |
| Maximum die-cutting pressure |
300t |
| Maximum die-cutting speed |
7500s/h |
| Feeder pile height (including pallet) |
1550mm |
| Delivery pile height (including pallet) |
1350mm |
| Die-cutting accuracy |
≤ ±0.075mm |
| Air supply requirements |
6-8bar; 200L/min |
| Main motor power |
11kW |
| Maximum total power |
20kW |
| Total weight |
17TON |
| Overall dimensions (excluding inspection table; including footboard) |
5200×4120×2330mm |
| Inner dimensions of die-cutting chase |
1100×770mm |

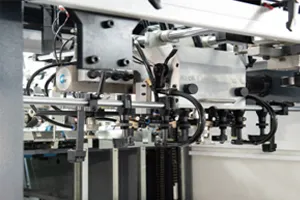

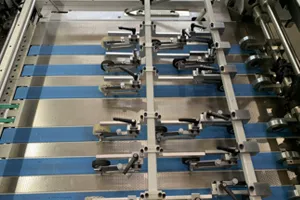

Feeding unit
1. Taiwan feeder with 4 suction cups for lifting & 4 suction cups for transfering ensures stable and fast paper feeding.
2. Preload device, non-stop feeding function, with Max pile height up to 1600 mm.
3. Rail-guided preload device enables operators to move the prepared pile to the feeder accurately and conveniently.
4. Side layers can be shifted from pull layers to push layers to fit different formats.
5. Paper feeding will slow down when the paper is about to reach front lays to achieve a more accurate paper orientation.

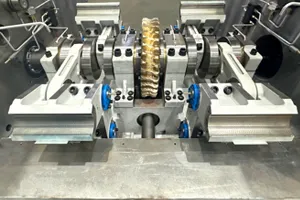

Die-cutting & Hot stamping unit
1. Cutting force is controlled by servo motor to achieve accurate and stable die cutting controlling through touch screen. The cutting force adjustment is accurate to 0.01mm.
2.The chase and die cutting plate are automatically locked by Japan SMC pneumatic cylinder; comparing to manual lock, this ensures much faster and sfter operation.
3. Centerline registering installation system of the chase ensures a convenient and fast assembly of cutting die.
4. By using special auxiliary tools, cutting dies of different sizes can be adopted to meet different task needs.
5.Grippers are structured in an adjustable type to ensure accurate paper registering.
Delivery unit
1. Delivery brake helps collect and align the paper.
2. You can also control each unit of the machine by using the 10.1" touch screen at delivery unit.
3. Auxiliary delivery rack ensures non-stop delivery; the speed slows down when delivery rack needs to be shifted
Electrical equipment
1. We developed independently reliable control system for machine use according to machine functional requirements.
2. Controling of the motor adopts French Schneider converter, servo controller for every single accurate movement.
3. Taiwan MW switches are used for stable power supply and to avoid unstable voltage.
4. 15.6" and 10.1" are installed respectively at both die-cutting unit and delivery unit.
5. The machine adopts imported brand relays, ac contactors and air switches to ensure the stability and reliability of the electrical units.
