Sheet size 1060*760mm (MAX.)
450*370mm (MIN.)
Max. die-cutting size 1045*745mm
Max. die-cutting speed 6000 (SHEET/HOUR)
4 suction cups for lifting & 4 suction cups for transfering ensures stable and fast paper feeding.
Preload device, non-stop feeding function, with Max pile height up to 1600 mm.
Rail-guided preload device enables operators to move the prepared pile to the feeder accurately and conveniently.
Side layers can be shifted from pull layers to push layers to fit different formats.
Paper feeding will slow down when the paper is about to reach front lays to achieve a more accurate paper orientation.

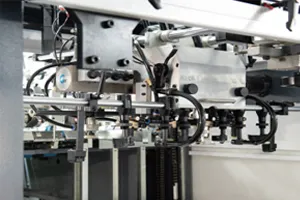

Self-developed 4-suction 4-feed feeder feeds various papers steadily fast, with a 1600mm pre-stacker enabling non-stop production.

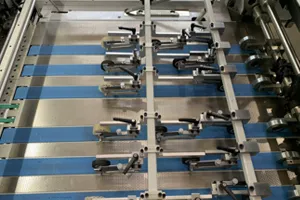

Six imported front drive belts cooperate with German cross steel plates to bear force evenly and guarantee flat paper conveying.
Five core parts processed by Mitsubishi five-face machine redesigned by German & Japanese engineers with ±0.01mm tolerance and max 600-ton die-cutting pressure.
SMC pneumatic cylinders lock die frames and bottom plates tightly, avoiding improper installation and losses from manual operation errors.

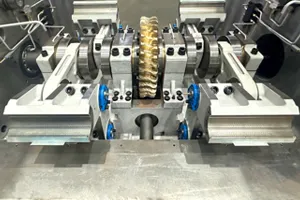

The precision-made main unit features high-efficiency self-locking worm drive and built-in quantitative oil supply to reduce wear of core shafts.
Equipped with 15-inch & 10.4-inch dual control panels, feeder and delivery sections support mutual cross-control for easy operation.
Optimized oil circuit fully lubricates toggle links for durable high-speed running, extending service life and cutting downtime via proactive maintenance.
Equipped with Eaton, Schneider and other imported electric parts, vibration-resistant wiring ensures low failure, fast response and safe easy maintenance.
290cm integrated ultra-wide wall plate boasts ultra-high rigidity, maintaining micron-level stability under heavy pressure and high speed beyond industry standards.

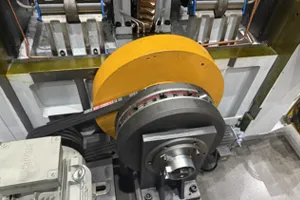

Enlarged flywheel boosts inertia to store energy, smooths torque impact and stabilizes transmission for heavy thick and composite materials processing.
-1350.webp)
Patented rear gauge adjusts gripper bars separately on two sides independently to greatly maximize the positioning accuracy of gripper rows.
Integral cast upper platform stress-relieved and precision-machined bears heavy pressure stably with long-term accuracy and low maintenance.
| Category | C106D |
| Paper size | Min. 450×370mm Max. 1060×760mm |
| Paper specifications | Paperboard: 0.1–3 mm Corrugated board: ≤4 mm White paperboard: 90–2000 g/m² |
| Gripper margin | 9-17mm |
| Maximum die-cutting area | 1045×745mm |
| Maximum die-cutting pressure | 550t |
| Maximum die-cutting speed | 6000s/h |
| Die-cutting precision | ≤±0.075mm |
| Inner dimensions of die-cutting chase | 1100×770mm |
| Feeder pile height (including pallet) | 1550mm |
| Delivery pile height (including pallet) | 1350mm |
| Air supply requirements | 6-8bar；200L/min |
| Main motor power | 15kW |
| Total weight | 21t |
| Maximum total power consumption | 24kW |
| Overall dimensions | 5197×4250×2430mm |
1. 4 suction cups for lifting & 4 suction cups for transfering ensures stable and fast paper feeding.
2. Preload device, non-stop feeding function, with Max pile height up to 1600 mm.
3. Rail-guided preload device enables operators to move the prepared pile to the feeder accurately and conveniently.
4. Side layers can be shifted from pull layers to push layers to fit different formats.
5. Paper feeding will slow down when the paper is about to reach front lays to achieve a more accurate paper orientation.
1.Cutting force is controlled by servo motor to achieve accurate and stable die cutting controlling through touch screen. The cutting force adjustment is accurate to 0.01mm.
2.The chase and die cutting plate are automatically locked by Japan SMC pneumatic cylinder; comparing to manual lock, this ensures much faster and sfter operation.
3. Centerline registering installation system of the chase ensures a convenient and fast assembly of cutting die.
4. By using special auxiliary tools, cutting dies of different sizes can be adopted to meet different task needs.
5.Grippers are structured in an adjustable type to ensure accurate paper registering.
1. Alternating current motor controlled delivery brake helps collect and align the paper.
2. You can also control each unit of the machine by using the 10.4" touch screen at delivery unit.
3. Auxiliary delivery rack ensures non-stop delivery; the speed slows down when delivery rack needs to be shifted.
1. We developed independently reliable control system for machine use according to machine functional requirements.
2. Controling of the motor adopts French Schneider converter, servo controller for every single accurate movement.
3. Taiwan MW switches are used for stable power supply and to avoid unstable voltage.
4. 15" and 10.4" are installed respectively at both die-cutting unit and delivery unit.
5. Relays, AC contactors and air switches are manufacturered by Germany Moeller, they are stable and safe.
24/7 online technical support with over 95% fault diagnosis accuracy.
On-site operation, maintenance, and GMP compliance training to ensure rapid team proficiency.
Global spare parts inventory network with rapid response within 72 hours.
Hardware/software upgrade solutions tailored to customer production capacity requirements.
