| Category |
E106Q |
| Paper size |
Min. 450×360mm
Max. 1060×740mm |
| Paper specifications |
Paperboard: 0.1–3 mm
Corrugated board: ≤4 mm
White cardstock: 90–2000 g/m² |
| Gripper margin |
9-17mm |
| Maximum die-cutting area |
1045×740mm |
| Maximum die-cutting pressure |
300t |
| Maximum die-cutting speed |
7500s/h |
| Feeder pile height (including pallet) |
1550mm |
| Delivery pile height (including pallet) |
1350mm |
| Inner dimensions of die-cutting chase |
1100×770mm |
| Air supply requirements |
6-8bar；200L/min |
| Main motor power |
11kW |
| Maximum total power consumption |
20kW |
| Total weight (including footboard) |
18.5t |
| Overall dimensions (including footboard) |
6190×4120×2330mm |

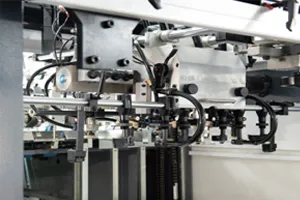

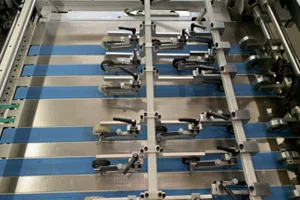

Feeding unit
1. Taiwan feeder with 4 suction cups for lifting & 4 suction cups for transfering ensures stable and fast paper feeding.
2. Preload device, non-stop feeding function, with Max pile height up to 1600 mm.
3. Rail-guided preload device enables operators to move the prepared pile to the feeder accurately and conveniently.
4. Side layers can be shifted from pull layers to push layers to fit different formats.
5. Equipped with mechanical double sheet detection device.
6. Omron fiber optic front gauge detection sensor effectively ensures product production accuracy.
7. Equipped with German Beck vacuum air pump.

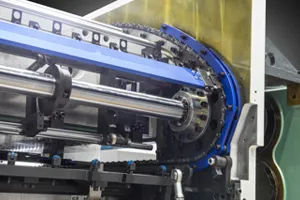

Die-cutting & Hot stamping unit
1. Cutting force is controlled by servo motor to achieve accurate and stable die cutting controlling through touch screen. The cutting force adjustment is accurate to 0.01mm.
2. The chase and die cutting plate are automatically locked by Taiwan AIRTAC pneumatic cylinder; comparing to manual lock, this ensures much faster and sfter operation.
3. Centerline registering installation system of the chase ensures a convenient and fast assembly of cutting die.
4. By using special auxiliary tools, cutting dies of different sizes can be adopted to meet different task needs.
5. Grippers are structured in an adjustable type to ensure accurate paper registering.

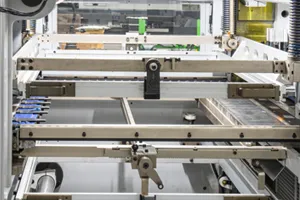

Stripping Unit
1. Centerline registering ensures a fast installation of the middle stripping frame; it also shortens set-up time while task shifting.
2. Choose to use stripping function by raising or lowering the upper stripping frame manually.
3. All stripping tool manufacturing is standardized that they are applicable to machines of different makes.
Delivery unit
1. Delivery brake helps collect and align the paper.
2. Auxiliary delivery rack ensures non-stop delivery.
Electrical equipment
1. We developed independently reliable control system for machine use according to machine functional requirements.
2. Controling of the motor adopts converter, servo controller for every single accurate movement.
3. Taiwan MW switches are used for stable power supply and to avoid unstable voltage.
4. 15.6" is installed respectively at die-cutting unit.
5. The machine adopts imported brand relays, ac contactors and air switches to ensure the stability and reliability of the electrical units.
