R80 Flatbed die cutting machine

Sheet size 300*260mm(MIN.)
800*600mm(MAX.)

Max. die-cutting size 785*585mm

Max. die-cutting speed 7500(SHEET/HOUR)

REQUEST A QUOTE

Compare

Download
R80
Automatic Flatbed die cutting machine
Introduction

Non-stop production: less setup and changeover time, thus increasing production, intelligent paper feeder and unique die-cutting to printing registration, greatly reducing feed-related downtime.

Diverse product range: a single machine can meet your die-cutting and embossing needs.

Efficient and cost-saving: fast conversion from die-cutting to waste removal, efficient production data management.

High-tech die-cutting: high production efficiency in offset laminating and folding carton products, this die-cutter can really improve your competitive advantage.

Humanized operation interface: the hot stamping part adopts a 19-inch high-definition touch screen, all settings and functions can be easily realized by touch. Based on the special understanding of the equipment, a unique operation and control system has been developed, which is simple, intuitive and easy to operate.

upload/1c/202505/automatic-foil-stamping-die-cutting-machine-2.jpg
Details

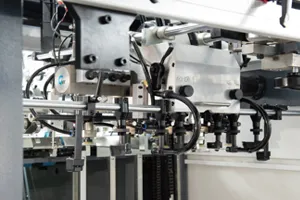

Feeder Section
Feeder Section

Self-developed 4-suction 4-feed feeder delivers stable fast paper feeding for various stocks, with 1600mm pre-stacking enabling non-stop operation.

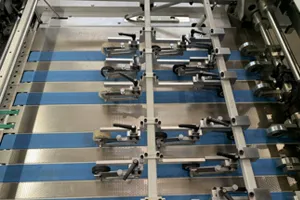

Paper Conveyor Belt
Paper Conveyor Belt

Six imported front drive belts matched with German cross steel plates ensure flat and smooth paper transportation.

Machine Body Section
Machine Body Section

Five core components processed by Mitsubishi five-face machine with imported hydraulic fixtures, keeping cumulative tolerance within ±0.01mm.

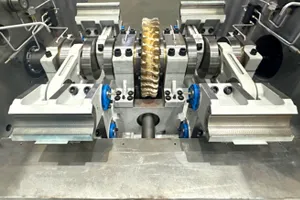

Main Unit
Main Unit

The precisely manufactured main unit adopts worm drive featuring high transmission efficiency, reliable self-locking and large reduction ratio.

Convenient Operation
Convenient Operation

Adopts 15-inch and 10.4-inch dual control systems, enabling mutual cross-control between feeder and delivery sections for easy operation.

Pneumatic Upper & Lower Lock
Pneumatic Upper & Lower Lock

SMC pneumatic cylinders lock die frames and bottom plates firmly, preventing improper installation and losses caused by manual operation errors.

Parameters
Category C80
Paper size Min. 300×260mm
Max. 800×600mm
Paper specifications Paperboard: 0.1–3 mm
Corrugated board: ≤4 mm
White paperboard: 90–2000 g/m²
Gripper margin 9-17mm
Maximum die-cutting area 785×585mm
Maximum die-cutting pressure 150t
Maximum die-cutting speed 7500s/h
Feeder pile height (including pallet) 1300mm
Delivery pile height (including pallet) 1050mm
Die-cutting accuracy ≤ ±0.075mm
Air supply requirements 6-8bar;200L/min
Main motor power 7.5kW
Total power 13kW
Total weight (including footboard) 14t
Overall dimensions (including footboard) 4833×3547×2093mm
Inner dimensions of die-cutting chase 840×620mm
From requirements analysis to equipment delivery, we provide full-process service support:

24/7 online technical support with over 95% fault diagnosis accuracy.

On-site operation, maintenance, and GMP compliance training to ensure rapid team proficiency.

Global spare parts inventory network with rapid response within 72 hours.

Hardware/software upgrade solutions tailored to customer production capacity requirements.
