S106DYDHQ Double-Station Automatic Heavy-Duty Foil Stamping, Die-Cutting And Waste Stripping Machine

Name: Double-Station Automatic Heavy-Duty Foil Stamping, Die-Cutting And Waste Stripping Machine
Brand: Guowang
SKU: 00334
Rating: 4.1 (217 reviews)

Sheet size 1060*760mm (MAX.)
450*370mm (MIN.)

Max. die-cutting size 1045*745mm

Max. die-cutting speed 6000 (SHEET/HOUR)

REQUEST A QUOTE

Compare

Download

S106DYDHQ

Double-Station Automatic Heavy-Duty Foil Stamping, Die-Cutting And Waste Stripping Machine

Introduction

The double-station automatic hot foil-stampings and die-cutting machine is a high-end equipment developedbvGuowang MachineryGroup through customerfeedback, combined with market demand and through the latest scientifc research technology from china and abroad. It is a set ofhigh-end equipment include hot stamping, die-cutting, waste stripping, lt provides an ideal solution for repeating foil-stamping or hot foil-stamping and stripping process.

According to the needs of customers, the equipment can realize a variety of different combinations of large-area hot foil-stamping + deep embossing+die-cutting+waste stripping, and flexible realization of different functions, signinficantly improved performance and configuration requirements. The first unit can reach a maximum pressure of 550 tons which can easily relize large-area, full-sheet, deep embossing and stamping needs.

The machine is equipped with pneumatic quick lock system, high-precision servo pressure regulating system and fine-tuning system to achieve short time job changing, greatly improve work efficiency and save your production cost.

upload/1c/202508/automatic-die-cutting-machine-with-stirpping-double-cam-gripper-bar-1.jpg

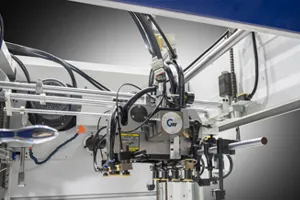

Feeder Unit

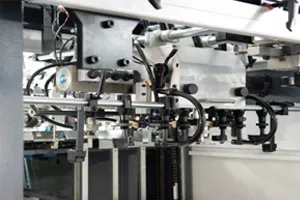

Optional (Mabeg) feeder, suitable for paper and cardboard.

Feeder can transport materials smoothly

Gripper Bar

Japan's Komori company provides double-cam gripper technology and participates in co-manufacturing the entire system.Doublecam gripper technology can accurately control acceleration and deceleration.The movement of the gripper can be accurately controlled, Suitable for wider paper range and higher speed.

Automatic Lubrication System

Separate control of cam and chain,Automatic lubrication system. Through the touchscree,you could set the time and quantity to lubricate.

upload/1c/202508/automatic-die-cutting-machine-with-stirpping-double-cam-gripper-bar-4.jpg

Transmission

Japan Sankyo index box. (Standard for T series)

upload/1c/202508/automatic-die-cutting-machine-with-stirpping-double-cam-gripper-bar-5.jpg

Gripper Edge Stripping

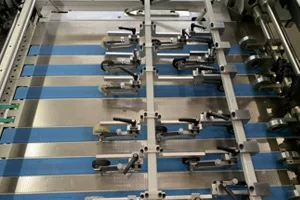

The blanking system realize separation for the waste paper edge and product, complete the die cutting on the upper of delivery part to separate waste paper edge falling onto conveyor belt perfectly, which will be transfered out of machine transportation side.

upload/1c/202508/automatic-die-cutting-machine-with-stirpping-double-cam-gripper-bar-6.jpg

Die-Cutting Unit

The die-cutting board frame and the die-cutting lower board are locked by cylinders,Avoid the situation that the upper and lower plate frames are not locked and installed in place, Effectively avoid losses caused by human operation errors.

upload/1c/202508/automatic-die-cutting-machine-with-stirpping-double-cam-gripper-bar-7.jpg

Electric Control Part

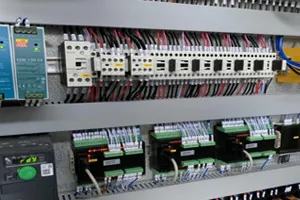

This machine is used in famous brand electrical components, including PIL Z safety relay, Muller relay, Schneider inverter contactor and air switch.

upload/1c/202508/automatic-die-cutting-machine-with-stirpping-double-cam-gripper-bar-8.jpg

Dual HMI

The blanking and feeder unit adopt 19-inch touch screen,and the delivery unit adopt 10.4-inch touch screen All the setting and function could be easily set through this touch screen. Unique operation system based on the special knowledge of the machine

upload/1c/202508/double-station-automatic-heavy-duty-foil-stamping-die-cutting-1.jpg

Delivery Unit

1.Adjustable platen brush controlled by AC motor to help unload and stack the paper from the gripper.

2.The delivery section can control the entire machine through a 10.4-inch touch screen.

3.Auxiliarydeliveryrackcanrealizenon-stopdelivery.

upload/1c/202508/double-station-automatic-heavy-duty-foil-stamping-die-cutting-2.jpg

Die Cutting & Foil Stamping Unit

1. Longitudinal fullframe foil feeding system, which can hot stamp both longitudinally and transversely, reducing the amount offoil used and saving foil changing time

2.The aluminum longitudinal axis can be increased to 6 axes according to customer needs, controlled by an independent servo. Yaskawa Servo System

3.The gold foil can be pulled out from the machine for easy replacement. Maximum gold foil diameter: 250mm

4.Both the vertical and horizontal directions are equipped with gold leaf separation blowing device, which is suitable for large-area hot stamping

5. The man-machine interactive touch function can set the length of the gold foil pullout

6.If the length ofthe gold foil isshorter than6m,analarmwill be triggered, and the gold foilmonitoring system can display the length of the remaining and used gold foil

Items	S106DYDHQ
Paper size	MIN. 450370mm MAX. 1060760mm
Paper specifications	Gray board: 0.1-3mm Corrugated board: ≤4mm Card Board: 90～2000g/m²
Max. die-cut format	1045*745mm
Max. hot‑stamping format	1040*740mm
Gripper margin range	9-17mm
The maximum die-cutting and hot stamping pressure of the first unit	550t
The maximum die-cutting pressure of the second unit	550t
Max. die-cutting speed	6000s/h
Max. hot stamping speed	5500s/h
Max. hologram / laser stamping speed	5000s/h
Die-cutting and ordinary ironing accuracy	±0.075mm
Holographic positioning and hot stamping accuracy	±0.20mm
The heating area of the first unit	20 temperature zones, Heating temperature 20-200°C
The heating area of the second unit	6 temperature zones，Heating temperature 20-120°C
Feeder pile height (including pallet)	1600mm
Delivery pile height (including pallet)	1350mm
Die-cut plate frame size	1100*770mm
Max. foil‑roll diameter	Φ250mm (lengthwise) Φ200mm (Transverse)
Main motor power	22kw
Air‑supply requirement	6-8bar; 600L/min
Total installed power	100kw
Total weight (including footrests)	42t
Machine Dimensions (including footrests)	850045602600mm
