Max. Pile Format 1080 *750 mm
Pile Height 30‑80 mm
Waste‑stripping Speed 5 times/min

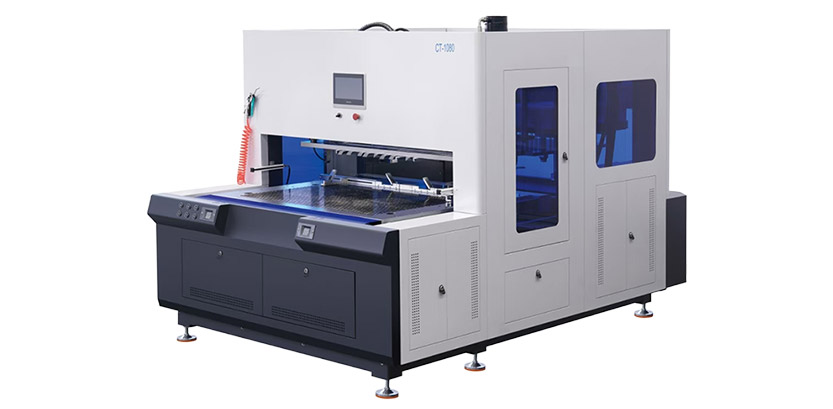

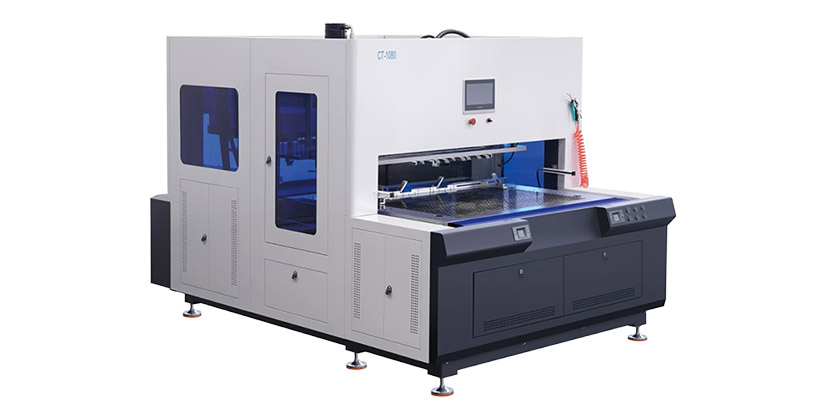

It performs waste‑stripping operations for printed paper products and corrugated board after die‑cutting.
Equipped with a powerful drive mechanism to deliver stable and efficient waste‑stripping power.
The whole machine is designed in compliance with CE requirements and adopts safety protection structures.
It quickly strips waste edges from paper piles, reduces labor intensity, and improves production efficiency.
| Category | CT-1080A | ||
| Number of Power Phases | Three-phase | ||
| Rated Power | 12kW | ||
| Rated Voltage | 380V | ||
| Power Frequency | 50-60HZ | ||
| Compressed Air | 5-6bar | ||
| Maximum Pressure | 100bar | ||
| Waste Removal Speed | 5times/min | ||
| Maximum Paper Stack Size | 1080×750mm | ||
| Paper Stack Height | 30-80mm | ||
24/7 online technical support with over 95% fault diagnosis accuracy.
On-site operation, maintenance, and GMP compliance training to ensure rapid team proficiency.
Global spare parts inventory network with rapid response within 72 hours.
Hardware/software upgrade solutions tailored to customer production capacity requirements.
