| Cutting width |
cm/inches |
176/69.29 |
| Cutting height (without press plate) |
cm/inches |
16.5/6.5 |
| Cutting length |
cm/inches |
200/78.74 |
| Main power |
kw |
7.5 |
| Net weight |
kg/lbs |
6200/13640 |
| Machine width with side table |
cm/inches |
376/148 |
| Without side table |
cm/inches |
330/129.92 |
| Machine length |
cm/inches |
387/152.36 |
| Machine height |
cm/inches |
173/68.11 |
| Front table length |
cm/inches |
100/39.37 |
| Tabletop height |
cm/inches |
90/35.43 |
| Press plate pressure |
Min. |
dan/lbs |
300/660 |
| Max. |
dan/lbs |
7000/15430 |
| Blade size (thickness*width*length) |
mm/inches |
13.75*160*2000/0.54*6.3*78.74 |
| Sharpening area maximum |
cm/inches |
6/2.36 |
| Minimum cutting |
With press plate |
cm/inches |
12/4.72 |
| Without press plate |
cm/inches |
3.5/1.38 |
| Cutting speed |
times/min |
45 |
| Packing size (length*width*height) |
cm/inches |
370*160*230/145.67*63*90.55 |
| Power supply voltage |
v |
361-399 |
| Wire thickness |
mm² |
4 |
Main performance
1. The high-precision, high-rigidity frame-type paper feeding mechanism is equipped with linear guides and high-precision gapless ball screws to ensure paper feeding accuracy.
2. The display screen uses products from Taiwan's LCD screen manufacturer AU, which ensures its service life.
3. The computer part is a Taiwanese industrial computer, which has reliable performance and stability, and can realize multi-machine communication and remote computer management.
4. The computer operation screen adopts a humanized design, making it easy for operators to operate.
5. The paper feeding motor adopts Japan's Yaskawa servo motor to achieve high-precision and fast positioning.
6. The computer control part is powered by Mean Well (MW) switching power supply, which ensures the stability of the power supply, effectively protects the computer control part, and avoids damage to the computer control part caused by excessive power supply.

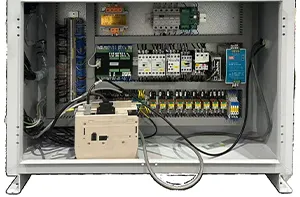

7. The main low-voltage control parts of the whole machine all use imported electrical appliances, including OMRON, IDEC, Schneider, American EATON, etc.
8. The hydraulic part adopts a fast pressurization system, the pressure meets the German TUV safety certification, and the American proportional valve is used to achieve infinite pressure adjustment through a 19-inch touch screen.
9. The whole machine adopts a gantry structure, which is convenient for users to install and adjust.

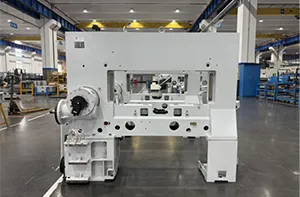

10. The frame adopts an internationally popular split structure, which effectively improves the cutting accuracy of the machine and facilitates user maintenance.
11. The chrome-plated working platform saves users' maintenance time and extends its service life.
12. The working platform is also equipped with a blowing structure to facilitate paper pushing and feeding.
13. The built-in knife back insurance structure and highly reliable 10 sets of light and shadow grating protection ensure the personal safety of the operator.
14. The uniquely designed knife back insurance structure avoids damage to the machine caused by misoperation.
15. All large parts of the whole machine have been treated with aging vibration and will not deform after long-term use.

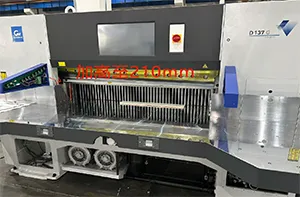

16. The efficient double worm gear transmission structure greatly improves work efficiency, allowing the cutting frequency to reach 45 times/minute.
17. The hook-type knife-loading structure makes knife-changing work simple and easy.
18. The cutting part is equipped with an automatic lubrication system as standard to increase work efficiency and extend the service life of the equipment.
19. The high-performance CIP4 program function is standard, which greatly improves the intelligence level of the machine and improves work efficiency. Compatible with PDF, JDF+JPG format
20. The fast paper feeder runs at a speed of up to 48m/min.
21. The ultra-large LCD display screen dynamically guides the machine operation process.
22. The pressure is automatically adjusted according to the size of the paper.
23. The paper press adopts a double spring structure to ensure the safety of the operator.
