| Sheet size |
1060*760mm Max. |
| 360*360mm Min. |
| Max. die-cutting size |
1045*745mm |
| Max. stamping size |
1040*740mm |
| Gripper margin |
7-17mm |
| Max. die-cutting force |
320 ton |
| 320 ton |
| Paper size |
GMS Card board: 90～2000g/m² Corrugated:≤4mm |
| Max. die-cutting speed |
5500 sheets/hour |
| Max. stamping speed |
5000 sheets/hour |
| Max. hologram stamping speed |
5000 sheets/hour |
| Precision |
±0.075mm |
| ±0.20mm |
| Heating zone |
20 heating zones, termperature 30°-200° |
| Max. pile height at feeder |
1600mm |
| Max. pile height at delivery |
1350mm |

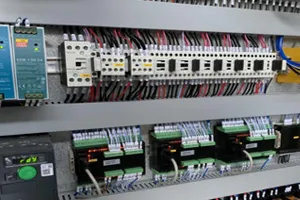

| Main motor power |
22kw |
| Total power |
65kw |
| Weight |
37 ton |
| Overall dimension |
8800mm*2320mm*2530mm |
| Max. longitudinal foil diameter |
Φ250mm |
| Air source |
6-8Bar; 600L/min |

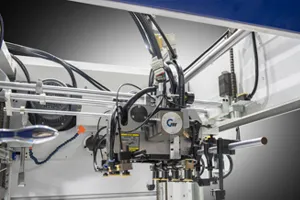

Feeding unit
1. 4 suction cups for lifting & 4 suction cups for transfering ensures stable and fast paper feeding.
2. Preload device, non-stop feedingn function, with Max pile height up to 1600 mm.
3. Rail-guided preload device enables operators to move the prepared pile to the feeder accurately and conveniently.
4. Side layers can be shifted from pull layers to push layers to fit different formats.
5. Side and front layers are equipped with precise location aligning photocells with adjustable sensitivity.
6. Paper feeding will slow down when the paper is about to reach front lays to achieve a more accurate paper orientation.
7. German stainless steel brings you a smooth and quick paper conveyance.
Die cutting & Foil stamping unit
1. Synchronous longitudinal & transversal foil feeding enables stamping at both direction, reducing foil using and shorten replacing time.
2. Optional longitudinal axles can reach to 6 at most, which are controlled by Japan Yaskawa servomotor independently.
3. Operator-friendly retractable foil holders are suitable for foil with maximum diameter 250mm.
4. Both longitudinal & transversal blowers for paper stripping are available for facilitating big format foil stamping.
5. Human–computer interaction screen ensures a quick setting of foil feeding interval.
6. The machine alarms when the foil is shorter than 6 meters and the diplay shows the foil length left.
7. Cutting force is controlled by Japan Fuji servo motor to achieve accurate and stable die cutting controlling through touch screen. The cutting force adjustment is accurate to 0.01mm.
8. Grippers are structured in an adjustable type to ensure accurate paper registering.
Die-cutting & hot stamping unit
1. Cutting force is controlled to achieve accurate and stable die cutting controlling through touch screen. The cutting force adjustment is accurate to 0.01mm.
2. The chase and die cutting plate are automatically locked by Japan SMC pneumatic cylinder; comparing to manual lock, this ensures much faster and sfter operation.
3. Centerline registering installation system of the chase ensures a convenient and fast assembly of cutting die.
4. By using special auxiliary tools, cutting dies of different sizes can be adopted to meet different task needs.
5. Grippers are structured in an adjustable type to ensure accurate paper registering.
Stripping Unit
1. Centerline registering ensures a fast installation of the middle stripping frame; it also shortens set-up time while the task – shifting happens.
2. Choose to use stripping function by raising or lowering the upper stripping frame manually.
3. All stripping tool manufacturing is standardized that they are applicable to machines of different makes.
Delivery unit
1. Alternating current motor controlled delivery brake helps collect and align the paper.
2. You can also control each unit of the machine by using the 10.4’ touch screen at delivery unit.
3. Auxiliary delivery rack ensures non-stop delivery.
