| Paper size |
Min. 550×450mm
Max. 1300×950mm |
| Max. die-cutting area |
1285×935mm |
| Max. hot stamping area |
1260×920mm |
| Gripper margin |
9-17mm |
| Max. die-cutting pressure |
450t |
| Paper specifications |
Paperboard: 0.1–3 mm
Corrugated board: ≤4 mm
White paperboard: 90–2000 g/m² |
| Max. die-cutting speed |
6500s/h |
| Max. hot stamping speed |
5000s/h |
| Max. holographic/laser stamping speed |
4000s/h |
| Heating zone |
16 heating zones, heating temperature 20–200°C |
| Feeder pile height |
1600mm |
| Delivery pile height |
1350mm |
| Main motor power |
15kW |
| Max. total power |
74kW |
| Total weight |
30t |
| Overall dimensions |
7280×4680×2460mm |
| Max. foil roll diameter |
Φ300mm |
| Air supply requirements |
6⁓8bar; 650L/min |
| Die-cutting precision |
≤±0.075mm |

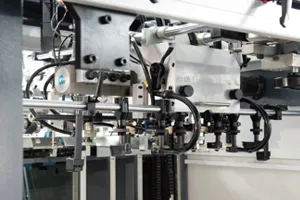

Feeding unit
1. 4 suction cups for lifting & 4 suction cups for transfering ensures stable and fast paper feeding.
2. Preload device, non-stop feedingn function, with Max pile height up to 1600 mm.
3. Rail-guided preload device enables operators to move the prepared pile to the feeder accurately and conveniently.
4. Side layers can be shifted from pull layers to push layers to fit different formats.
5. Side and front layers are equipped with precise location aligning photocells with adjustable sensitivity.
6. Paper feeding will slow down when the paper is about to reach front lays to achieve a more accurate paper orientation.
7. Paper feeding will slow down when the paper is about to reach front lays to achieve a more accurate paper orientation.

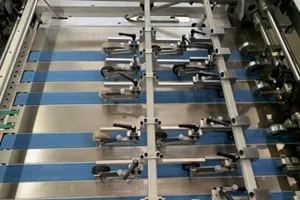

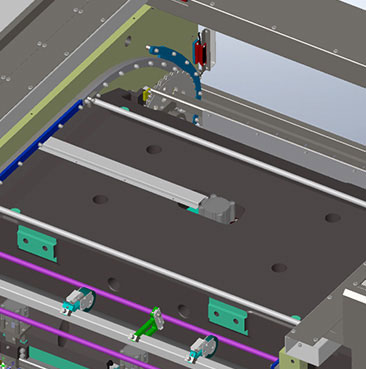

8. German stainless steel brings you a smooth and quick paper conveyance.

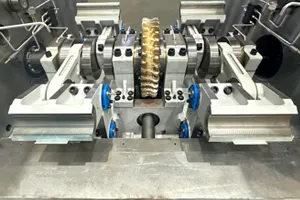

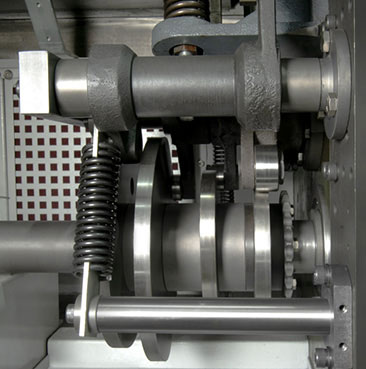

Die cutting & Foil stamping unit
1. Synchronous longitudinal & transversal foil feeding enables stamping at both direction, reducing foil using and shorten replacing time.
2. Optional longitudinal axles can reach to 6 at most, which are controlled by Japan Yaskawa servomotor independently.
3. Operator-friendly retractable foil holders are suitable for foil with maximum diameter 250mm.
4. Both longitudinal & transversal blowers for paper stripping are available for facilitating big format foil stamping.
5. Human–computer interaction screen ensures a quick setting of foil feeding interval.
6. The machine alarms when the foil is shorter than 6 meters and the diplay shows the foil length left.
7. Cutting force is controlled by Japan Fuji servo motor to achieve accurate and stable die cutting controlling through touch screen. The cutting force adjustment is accurate to 0.01mm.
8. Grippers are structured in an adjustable type to ensure accurate paper registering.
9. The chase and die cutting plate are automatically locked by SMC pneumatic cylinder, ensuring you faster and safer operation.
10. Centerline registering installation system of the chase ensures a convenient and fast assembly of cutting die.
Delivery unit
1. Delivery brake helps collect and align the paper.

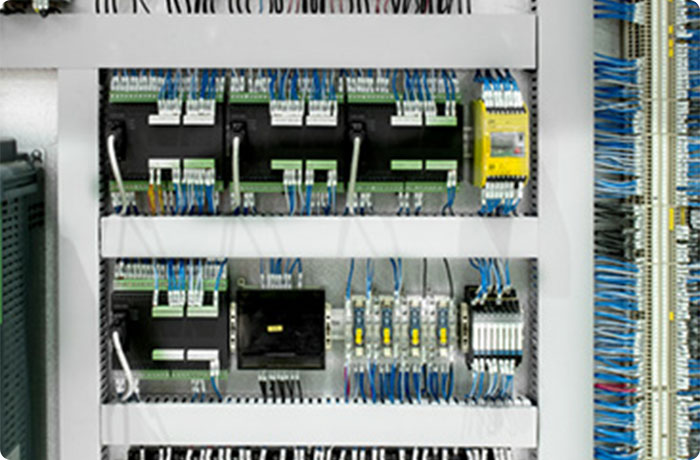

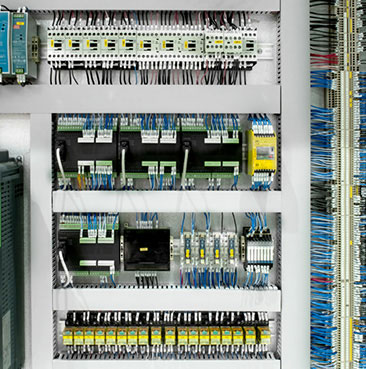

2. You can also control each unit of the machine by using the 10.4’ touch screen at delivery unit.
3. The sub-paper receiving frame is controlled by ac motor to realize no-stop automatic paper receiving.
