Paper size |
Min. 450×370mm
Max. 1060×760mm |
| |
Paper specifications |
Paperboard: 0.1–3 mm
Corrugated board: ≤4 mm
White cardstock: 90–2000 g/m² |
| |
Gripper margin |
9-17mm |
| |
Max. die-cutting area |
1045×745mm |
| |
Max. hot stamping area |
1040×740mm |
| |
Max. die-cutting pressure |
320t |
| |
Max. die-cutting speed |
7500s/h |
| |
Max. hot stamping speed |
6500s/h |
| |
Max. holographic/laser stamping speed |
5500s/h |
| |
Inner dimensions of die-cutting chase |
1100×770mm |
| |
Max. foil roll diameter |
Φ250mm |
| |
Die-cutting precision |
≤±0.075mm |
| |
Heating zone |
20 heating zones, temperature range 20°C–200°C |
| |
Feeder pile height (including pallet) |
1550mm |
| |
Delivery pile height (including pallet) |
1350mm |
| |
Air supply requirements |
6⁓8bar；600L/min |
| |
Main motor power |
11kW |
| |
Max. total power |
76kW |
| |
Total weight |
20.5t |
| |
Overall dimensions |
6264×4350×2580mm |

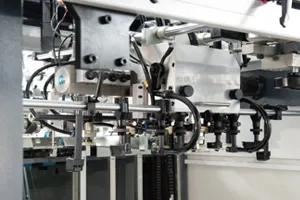

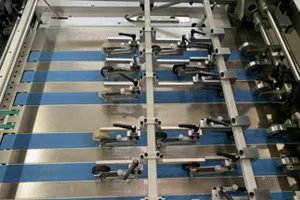

Feeding unit
1. Feeder with 4 suction cups for lifting & 4 suction cups for transfering ensures stable and fast paper feeding.
2. Preload device, non-stop feedingn function, with Max pile height up to 1600 mm.
3. Rail-guided preload device enables operators to move the prepared pile to the feeder accurately and conveniently.
4. Side layers can be shifted from pull layers to push layers to fit different formats.
5. Side and front layers are equipped with precise location aligning photocells with adjustable sensitivity.
6. Paper feeding will slow down when the paper is about to reach front lays to achieve a more accurate paper orientation.
7. German stainless steel brings you a smooth and quick paper conveyance.

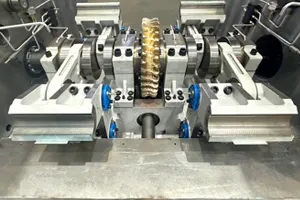

Die cutting & Foil stamping unit
1. Synchronous longitudinal & transversal foil feeding enables stamping at both direction, reducing foil using and shorten replacing time.
2. 3 longitudinal axles , which are controlled by Japan Yaskawa servomotor independently.
3. Operator-friendly retractable foil holders are suitable for foil with maximum diameter 250mm.
4. Independent 20-temperature zone control, more accurate temperature control
5. Automatic calculation and simulation of foil pull, to make foil setting more direct and convenient.
6. The foil remaining alarm can be set. When the foil length is less than the set length, it will automatically alarm and stop, and the computer processing foil monitoring system will display the remaining and used gold foil length.
7. The pressure is adjusted quickly by the touch screen of the whole machine, and the precision of the pressure is 0.01mm.
8. The chase and die cutting plate are automatically locked by SMC pneumatic cylinder, ensuring you faster and safer operation.
9. Centerline registering installation system of the chase ensures a convenient and fast assembly of cutting die.
10. Grippers are structured in an adjustable type to ensure accurate paper registering.
Delivery unit
1. Alternating current motor controlled delivery brake helps collect and align the paper.
2. You can also control each unit of the machine by using the 10.4’ touch screen at delivery unit.
3. Auxiliary delivery rack ensures non-stop delivery.
4. The mechanical bidirectional paper matching device makes the paper receiving more stable and smooth.
