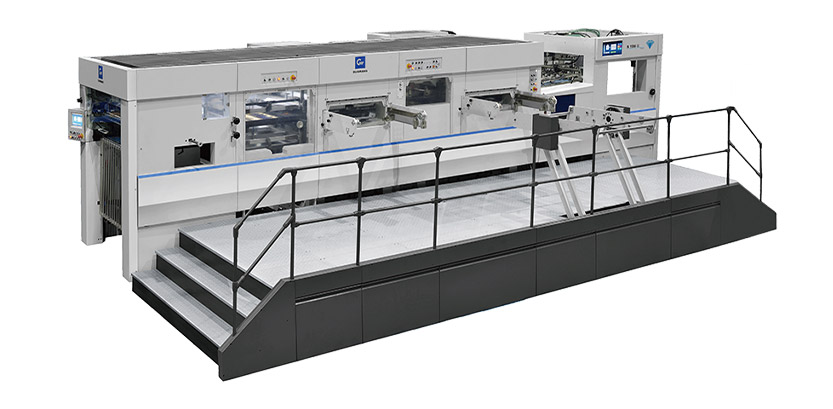

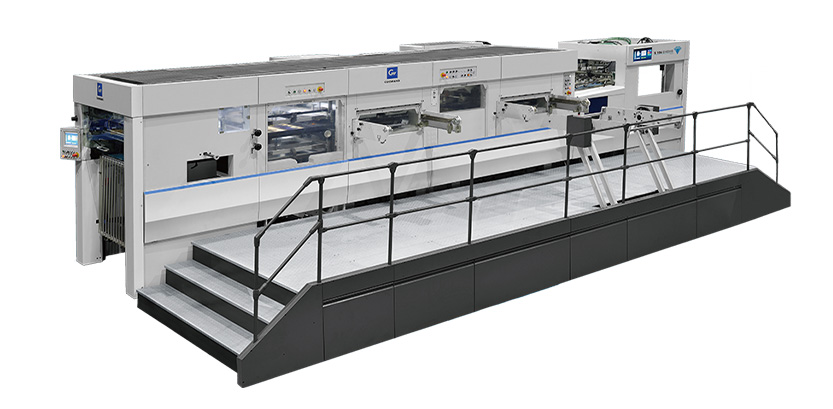

S106Q Dual‑unit Die‑cutting & Stripping Machine

Paper feeding section

Feeder Head: High-quality feeder with 4 suction cups for paper suction and 4 suction cups for paper feeding, ensuring stable and fast paper feeding.

Pre-stacking Device: Paper feeding without machine interruption. Maximum stacking height 1600mm (including tray).

Front Guide Position Detection: Detects whether the paper has accurately reached the front guide position via a photoelectric switch.

Side Guide Position Detection: Triggers a sensor switch with precise mechanical action to determine if the paper is in position (applicable to all printing colors).

Vacuum Pump: High-quality German-imported Becker pump for longer service life.

Push/Pull Integrated Side Guide: Flexible switching for different paper weights.

Feeder Control Panel: Convenient paper feeder operation.

Mechanical Double Sheet Detection: Utilizes paper thickness to trigger a mechanical switch to determine if double sheets are feeding.

Single-Point Electromagnetic Clutch: Enables the linkage between the feeder and paper conveyor belt with the main unit, facilitating machine adjustment and testing.

First unit die-cutting section

Pneumatic locking of the upper and lower die-cutting frames and bottom liner: A quick-locking cylinder device prevents human error caused by improper locking of the upper and lower frames.

Centerline alignment system: The die-cutting frame uses a centerline-based quick-positioning mounting method, eliminating the need for operators to consider positional deviations during installation.

High-quality gripper plates: Utilizing high-quality gripper plates imported from Japan, ensuring stable clamping force and a long service life.

Pre-stretched high-quality chain: The chain undergoes 72 hours of high-speed simulated operation, resulting in more stable chain accuracy.

Pneumatic clutch system: Faster braking and more stable equipment operation.

Torque limiter: In case of machine malfunction, the torque limiter disengages to protect the machine from further damage.

Indexing gearbox transmission: An optimized indexing gearbox extends the equipment's service life and improves gear positioning accuracy.

Pneumatic lifting of the bottom liner: The bottom liner is lifted by a cylinder, disengaging it from the moving platform for easier and less strenuous loading and unloading.

Main drive automatic lubrication and cooling system: Immersion and drip lubrication ensure the main drive mechanism is always lubricated, resulting in more stable die-cutting pressure and extending equipment lifespan.

Chain automatic lubrication system: Automatic lubrication with settable lubrication time (amount), extending chain life and ensuring smoother equipment operation.

Cam automatic lubrication system: Automatic lubrication with settable lubrication time (amount), extending cam life and ensuring smoother equipment operation.

Servo pressure control system: Employs a servo system for precise pressure control via computer, with an adjustment accuracy of 0.01mm.

Ductile iron honeycomb panel: Ductile iron material offers greater stability, higher strength, and better corrosion resistance.

Paper drop detection: A photoelectric sensor detects whether paper has fallen into the main unit, preventing damage to the die-cutting plate.

Two-way quick-locking function: Utilizes a cylinder-driven two-way quick-locking device to avoid human error caused by incomplete plate locking.

Pressure stabilization function: The computer-controlled high-precision pressure stabilization function ensures that the equipment pressure remains stable at all times, effectively extending the service life of the blade.

The second unit's die-cutting and waste removal section

Three-way waste removal structure: Employs an upper, middle, and lower waste removal frame structure to achieve waste removal functionality.

Centerline alignment system: Both the upper and middle waste removal frames utilize a center positioning system to improve plate loading efficiency.

Rapid plate loading device: Enhances the plate loading efficiency of the middle waste removal frame.

Pneumatic rapid lifting of the upper waste removal frame: The upper waste removal frame employs a cylinder rapid lifting device to improve plate loading efficiency and reduce operator workload.

Paper collection section

Non-stop paper collection: Equipped with an auxiliary paper collection structure, enabling paper collection without stopping the machine.

Two-way air blowing function for paper collection: Utilizes two-way air blowing for rapid paper alignment.

Mechanical auxiliary paper pressing function: Utilizes mechanical paper pressing for rapid paper collection.

Anti-foot-pressurization photoelectric protection function for paper collection: Prevents operator's feet from being pressed by the lifting platform, providing enhanced safety.
