D-190C intelligent double rotary sheeter with auto logistics system

Paper weight range 150-1000 gsm

Maximum paper format 1900mm

Maximum cutting speed 300 m/min

REQUEST A QUOTE

Compare

Download
D-190C
intelligent double rotary sheeter with auto logistics system
Introduction

The intelligent double rotary sheeter adopts German technology and combines many years of experience in producing paper cutters to develop new products with high precision, high efficiency and high stability. This product is widely used in cardboard, art paper, kraft paper, culturalpaper,doubleoffsetpaper,high- gloss photo paper, gold and silver card board, aluminum foil paper, laser paper, to bacco and alcohol packaging paper, etc. It is equipped with high-quality cutting roller, backlash-free gears, high-speed dynamic-balanced knife holders, British imported high-power servo system with energy storage cabinet and improved lubrication system , as well as high-definition LED touch screen with graphic direct-view interface design, dual-screen synchronization system for more convenient and comfortable operation etc. The automatic non-stop splicer for unwinding, non-stop and non-deceleration delivery, automatic logistics system as pictures displayed are available for D-C Series to achieve higher efficiency, highly recommended to paper mill and converting industry.

upload/1c/202505/intelligent-double-rotary-sheeter-with-ink-jet-option-1.jpg
Details

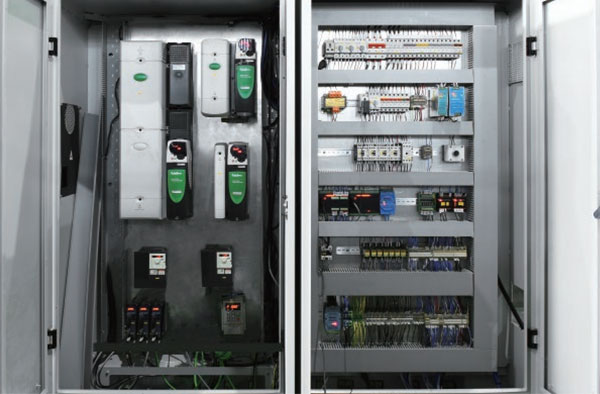

Electric Control Part
Electric Control Part
Using 19-inch industrial computer, British CT high-end high-power servo system, equipped with a software control system with independent intellectual property rights, the picture is harmonious, the display content is rich, and the operability is strong. High-efficiency high-power servo, combined with energy storage, effectively saves electric energy, improves economy, and truly achieves green and energy-saving.

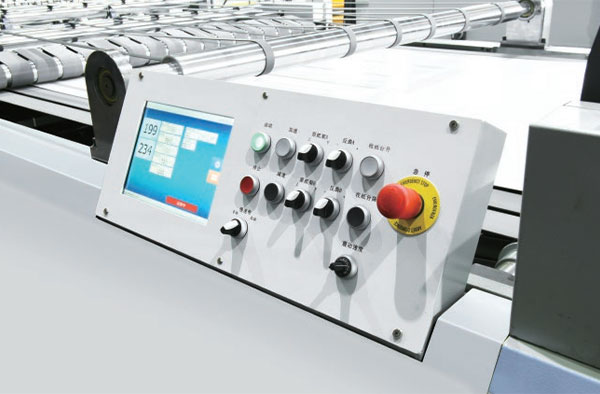

Electric Control Part
Electric Control Part
Using 19-inch industrial computer, British CT high-end high-power servo system, equipped with a software control system with independent intellectual property rights, the picture is harmonious, the display content is rich, and the operability is strong. High-efficiency high-power servo, combined with energy storage, effectively saves electric energy, improves economy, and truly achieves green and energy-saving.

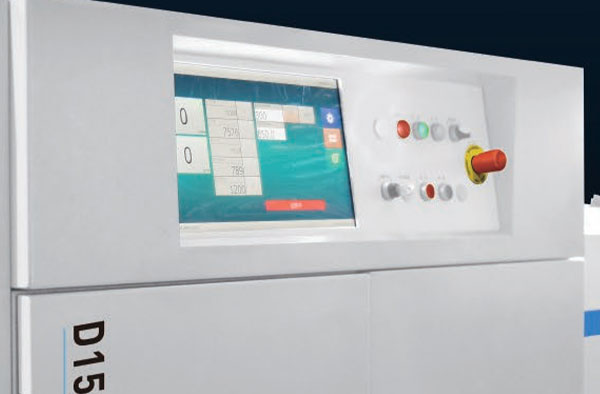

Electric Control Part
Electric Control Part
Using 19-inch industrial computer, British CT high-end high-power servo system, equipped with a software control system with independent intellectual property rights, the picture is harmonious, the display content is rich, and the operability is strong. High-efficiency high-power servo, combined with energy storage, effectively saves electric energy, improves economy, and truly achieves green and energy-saving.

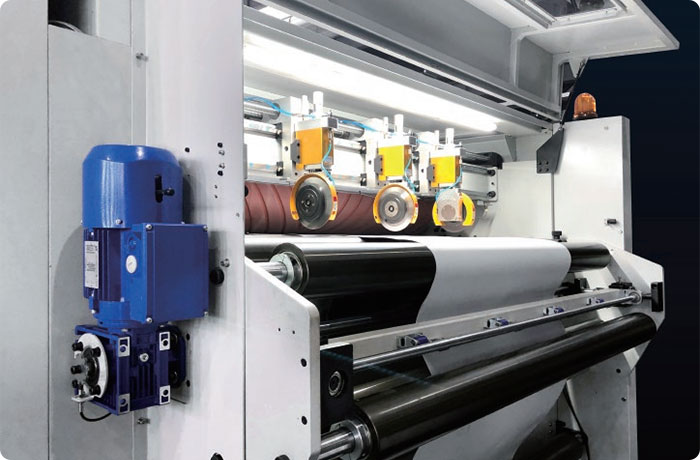

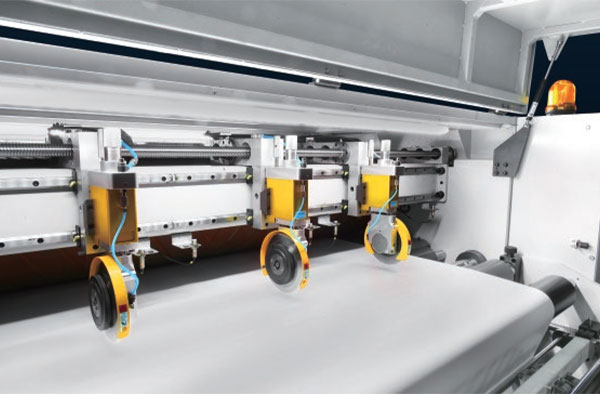

Slitting Part (Optional)
Slitting Part (Optional)
Servo control high-precision center splitting knife and trimming knife, realize automatic positioning, convenient adjustment, and improve efficiency.Two-stage automatic air pressure lowering and relying on the knife action to accurately adjust the cutting depth ofthe blade. The cutting structure of cutting reduces the paper powder while making the cut surface smoother.

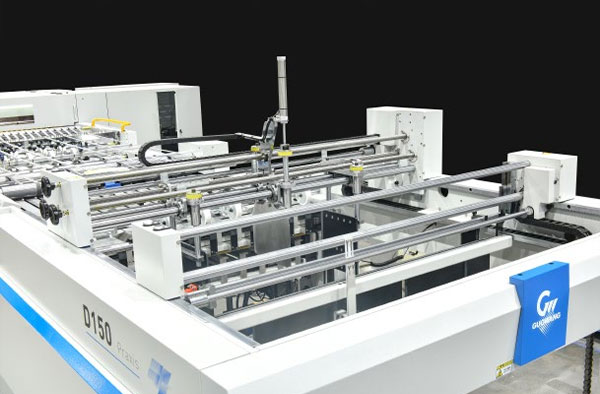

Auto Positioning (Optional)
Auto Positioning (Optional)

Automatic swift adjustment (50mm/s) by inputting paper parameters in touch screen

1. Paper unwinder

2. Web guide sensor

3. Slitters

4. Decelerating pressing belt

5. Jogging plates, separating plates, baffle plates

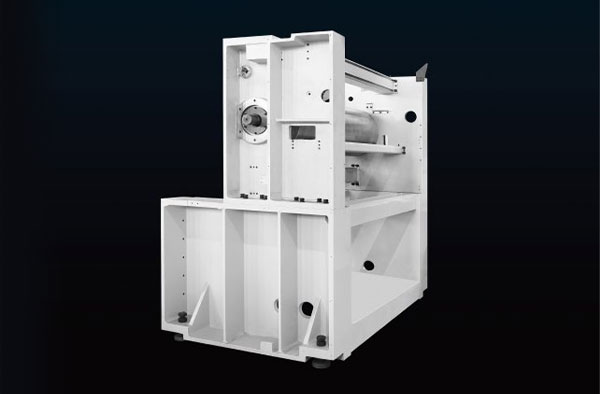

Main Body
Main Body
The main body ofthe main body adopts a casting structure and is made of high-quality nodular cast iron. The accuracy level is required to ensure the stability ofthe body, and the whole machine runs more stable and reliable.
Oil Lubrication System
Oil Lubrication System
The spray gear ubrication system ensures the gears are fully lubricated during the entire operation. Effectively prolong the service life ofthe machine.
Double Rotary Knife Set
Double Rotary Knife Set
Equipped with high-power and high-response British CT servo to ensure cutting accuracy and efficiency. The introduction of Taiwan's advanced cutter head technology and a gap-free gear structure design can effectively eliminate the shaking gap of the two knives, ensuring the life of the blade and cutting accuracy.The box body is made of nodular cast iron. After aging treatment, it is processed by a 5-axis high-precision machining center at one time to ensure the accuracy and consistency of the product. The tool holder adopts an integral casting structure, which effectively guarantees the stability of the tool body during high-speed operation.
Reverse Bending System
Reverse Bending System
The automatic recurve control system will automatically adjust the degree of recursion according to the change of the paper roll,so that the paper isflatter and the cutting is smoother.
Parameters
Specifications



Category D190C
Paper range 150-1000GSM
Maximum paper size 1900mm
Maximum roll diameter 1800mm
Cut-off length range 400-1700mm
Cutting accuracy ± 0.15mm
Maximum cutting speed 300m/min
Maximum cutting frequency 500p/min
Stack height (including pallet) 1700mm
Main motor power 68.9kW
Total power 98/105kW
Total weight 28TON
Air supply requirements 6-8bar; 50L/min

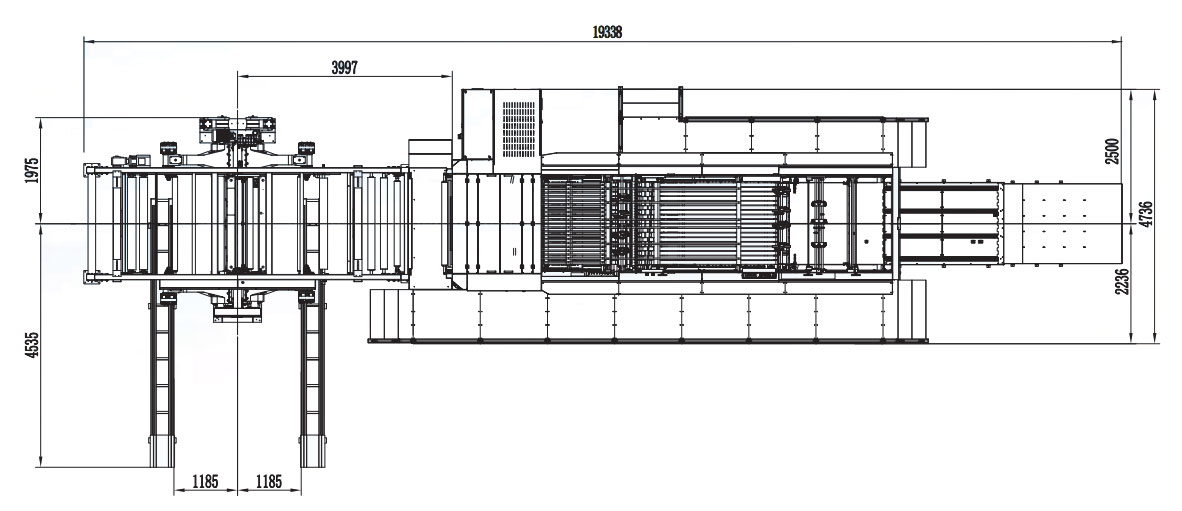

D Series Installation Floor Plan







Product Features



Configuration Items Configuration   ● Standard   ○ Optional   × Not available
D190C
Mill Roll Stand Section
1 Accumulator-based hydraulic power unit ●
2 Pneumatic brake tension control ●
3 Electro-pneumatic proportional valve ●
4 Automatic anti-bowing device ●
5 Automatic web guiding device ●
Slitting Main Unit Section
1 Main unit servo ●
2 Traction servo ●
3 Center-split and edge-trimming knives ●
4 Air-cooled hydraulic lubrication station ●
5 High-power trim waste suction system ○
6 16-inch true-color industrial PC ●
Conveying section
1 Static elimination device ●
2 High-speed servo-driven belt ●
3 Telescopic high-speed belt structure ●
4 Automatic belt tensioning system ●
5 Vacuum paper holding function ●
6 10-inch true-color industrial PC ●
Paper delivery section
1 Left and right side vibration for paper alignment ●
2 Tag insertion for counting ●
3 Front paper jogging mechanism ●
Electrical Control Section
1 High-quality electrical components ●
2 Safety control components ○
3 Main operation panel ●
4 Secondary operation panel ●
5 Variable frequency drive (VFD) ●
6 Sensors ●
7 Push-button switches ●
8 Low-voltage power distribution equipment ●
9 Operation controller ●
10 High-power servo system ●
