Maximum size of inner platform (Y) 1240 mm
Maximum size of inner platform (X) 1700 mm
Maximum travel (stack height) 900 mm
REQUEST A QUOTE
Compare

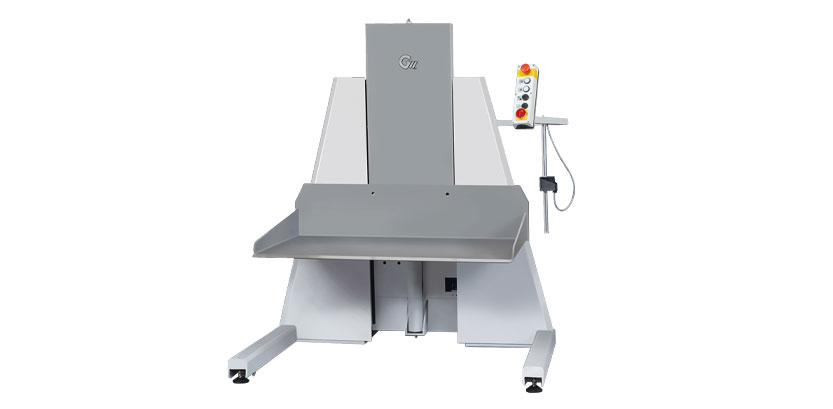

It can be used as a paper lifter or a paper lowerer.
It uses an Italian hydraulic station to provide strong power.
The oil circuit design meets CE requirements and adopts an explosion-proof design.
It can move paper piles up and down, reducing labor intensity and improving efficiency.
| Model | LT-1 | LT-2 | LT-3 | LT-4 |
| Maximum size of inner platform (Y) | 620 mm | 840 mm | 1090 mm | 1240 mm |
| Maximum size of inner platform (X) | 900 mm | 1270 mm | 1520 mm | 1700 mm |
| Maximum travel (stack height) | 850 mm | 850 mm | 900 mm | 900 mm |
| Maximum load | 450 mm | 1200 mm | 1200/2000 mm | 2000 mm |
| Noise level (EN13023) | 77,9 dB | 77,9 dB | 77,9 dB | 77,9 dB |
| Packing size | 1370×1250×1800 mm | 1480×1810×1800 mm | 1750×2110×1800 mm | 1940×2150×1940 mm |
| Model | LT-1 | LT-2 | LT-3 | LT-4 |
| Width (0) | 1050 mm | 1610 mm | 1910 mm | 1950 mm |
| Depth (D) | 1170 mm | 1280 mm | 1550 mm | 1740 mm |
| Height | 1500 mm | 1500 mm | 1500 mm | 1640 mm |
| Height at maximum stroke | 2100 mm | 2100 mm | 2100 mm | 2120 mm |
| Net weight | 500 kg | 630 kg | 770 kg | 1100 kg |
| Power supply voltage | 380±5% V /50 HZ | 380±5% V / 50 HZ | 380±5% V /50 HZ | 380±5% V / 50 HZ |
| Power consumption (maximum) | 1KW | 1.2 KW | 1.2KW | 1.6 KW |
| Maximum fuse current | 6A | 6A | 6A | 6A |
