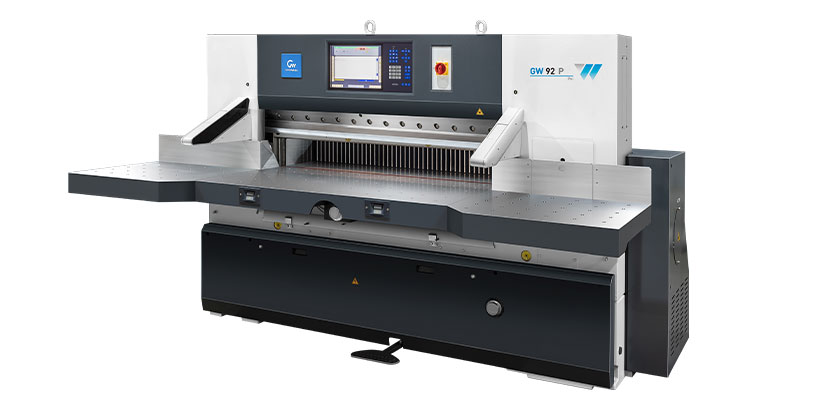

GW92P Automatic paper cutting machine

Installation parameters

Technical parameters

Configuration parameters

Main performance

1. The high-precision and high-rigidity frame-type paper feeding mechanism is equipped with linear guides and high-precision gapless ball screws to ensure paper feeding accuracy.

2. The display screen uses products from Taiwan's LCD screen manufacturer AU, which ensures its service life.

3. The computer part is a Taiwanese industrial computer, which has reliable performance and stability, and can realize multi-machine communication and remote computer management.

4. The computer operation screen adopts a humanized design, which makes it easy for operators to operate.

5. The paper feeding motor adopts a domestic servo motor to achieve high-precision and fast positioning.

6. The computer control part is powered by Mean Well (MW) switching power supply, which ensures the stability of the power supply, effectively protects the computer control part, and avoids damage to the computer control part caused by excessive power supply.

7. The main low-voltage control parts of the whole machine all use imported electrical appliances, including OMRON, IDEC, Schneider, EATON, etc.

8. The hydraulic part adopts a fast boost system, and the pressure meets the German TUV safety certification. A German proportional valve can be selected to achieve stepless pressure adjustment through a 15-inch touch screen.

9. The whole machine adopts a gantry structure, which is convenient for users to install and adjust.

10. The frame adopts an internationally popular split structure, which effectively improves the cutting accuracy of the machine and facilitates user maintenance.

11. The chrome-plated working platform saves users' maintenance time and extends its service life.

12. The working platform is also equipped with a blowing structure to facilitate paper pushing and feeding.

13. The built-in knife back insurance structure and highly reliable 10 sets of light and shadow grating protection ensure the personal safety of the operator.

14. The uniquely designed knife back double insurance structure avoids secondary damage to the machine caused by misoperation.

15. All large parts of the whole machine have been treated with aging vibration and will not deform after long-term use.

16. The efficient worm gear transmission structure greatly improves work efficiency, allowing the cutting frequency to reach 45 times/minute.

17. The hook-type knife-mounting structure makes knife changing simple and easy.

18. The cutting part is equipped with an automatic lubrication system to increase work efficiency and extend the service life of the equipment.
