| Paper size |
Min. 450×370mm
Max. 1060×760mm |
| Paper specifications |
Paperboard: 0.1–3 mm
Corrugated board: ≤4 mm
White paperboard: 90–2000 g/m² |
| Maximum die-cutting format |
1045×745mm |
| Gripper margin |
9-17mm |
| Heating zone |
Unit 1: 6 temperature zones, heating temperature 20⁓-120℃
Unit 2: / |
| Maximum die-cutting pressure (1st unit) |
550t |
| Maximum die-cutting pressure (2nd unit) |
320t |
| Maximum die-cutting speed |
6500s/h |
| Die-cutting accuracy |
≤±0.075mm |
| Feeder pile height (including pallet) |
1600mm |
| Delivery pile height (including pallet) |
1350mm |
| Inner dimensions of die-cutting chase |
1100×770mm |
| Air supply requirements |
6⁓8bar；600L/min |
| Main motor power |
22kW |
| Maximum total power |
50kW |
| Total weight (including footboard) |
38t |
| Overall dimensions |
8500×5400×2600mm |

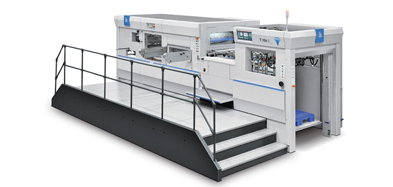

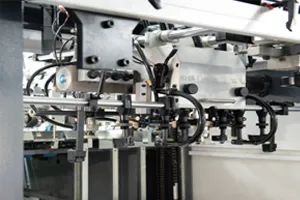

Feeding unit

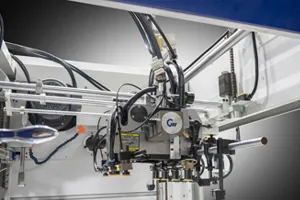

1. 4 suction cups for lifting & 4 suction cups for transfering ensures stable and fast paper feeding.
2. Preload device, non-stop feedingn function, with Max pile height up to 1600 mm
3. Rail-guided preload device enables operators to move the prepared pile to the feeder accurately and conveniently.
4. Side layers can be shifted from pull layers to push layers to fit different formats.
5. Side and front layers are equipped with precise location aligning photocells with adjustable sensitivity.
6. Paper feeding will slow down when the paper is about to reach front lays to achieve a more accurate paper orientation.

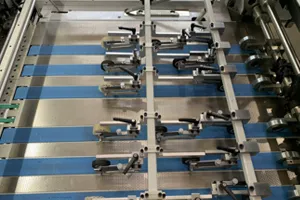

7. German stainless steel brings you a smooth and quick paper conveyance.

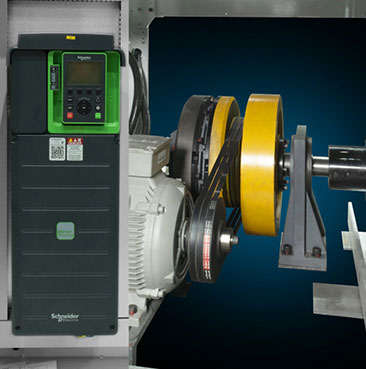

Pressure heating die cutting unit
1. Cutting force is controlled by servo motor to achieve accurate and stable die cutting controlling through touch screen. The cutting force adjustment is accurate to 0.01mm.
2. Adopt high precision temperature sensor, Omron PLC temperature controller, PID control mode, high temperature control accuracy, ±1ºC.
3. Independent heating zone. The temperature control can be opened independently according to the need, effectively save power.
4. Re-strengthen the design of the five major castings of the main engine, so that they can withstand the greater pressure of 550T, so that the embossment effect of the product is more excellent.
5. The pressure is adjusted quickly by the touch screen of the whole machine, and the precision of the pressure is 0.01mm.
6. The gripper bar adopts an adjustable structure, which is convenient for the operator to maintain the production accuracy of the machine during the use of the machine.
7. Adopting Japanese Omron temperature control system, temperature control of 30-200℃ can be realized.
Die-cutting unit
1. Cutting force is controlled by servo motor to achieve accurate and stable die cutting controlling through touch screen. The cutting force adjustment is accurate to 0.01mm.
2. The chase and die cutting plate are automatically locked by Japan SMC pneumatic cylinder; comparing to manual lock, this ensures much faster and sfter operation.
3. Centerline registering installation system of the chase ensures a convenient and fast assembly of cutting die.
4. By using special auxiliary tools, cutting dies of different sizes can be adopted to meet different task needs.
5. Grippers are structured in an adjustable type to ensure accurate paper registering.
Stripping Unit
1. Centerline registering ensures a fast installation of the middle stripping frame; it also shortens set-up time while the task – shifting happens.
2. Choose to use stripping function by raising or lowering the upper stripping frame manually.
3. All stripping tool manufacturing is standardized that they are applicable to machines of different makes.
Delivery unit
1. Alternating current motor controlled delivery brake helps collect and align the paper.

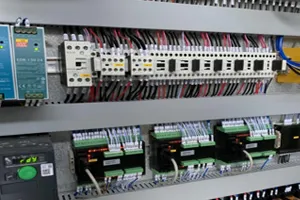

2. You can also control each unit of the machine by using the 10.4' touch screen at delivery unit.
3. Auxiliary delivery rack ensures non-stop delivery.
