Installation parameters
| Category |
1370 |
| Machine length |
2823/2923mm |
| Machine width |
2900/3400mm |
| Machine height |
1680mm |
| Machine foundation length |
750mm |
| Machine foundation width |
750mm |
| Machine foundation thickness |
200mm |
| Machine half width |
1288mm |
| Net weight |
4.2TON |
| Gross weight |
4.33TON |
| Packing size |
2950*1550*2000mm |
Technical parameters
| Category |
GW137G |
| Max. cutting length |
1450mm |
| Max. cutting width |
1370mm |
| Max. cutting height |
165mm |
| Min. cut (without false clamp) |
30mm |
| Min. cut (with false clamp) |
90mm |
| Table length in front of cutting line |
735mm |
| Table length behind cutting line |
1925mm |
| Side table length (optional) |
650 (750) mm |
| Side table width (optional) |
750 (1000) mm |
| Table height from floor |
900mm |
| Clamp pressure (max.) |
45KN |
| Clamp pressure (min.) |
1.5KN |
| Blade specifications |
13.7×160×1650mm |
| Max. sharpenable length |
60mm |
| Cutting speed |
45times/min |
| Paper feed speed (max.) |
48m/min |
| Main power |
4kW |
| Power supply voltage |
380V+5%, 50HZ±1% |
| Wire gauge |
2.5mm² |
| Cutting accuracy |
±0.1mm |
Configuration parameters
| Category |
GW137G |
| Maximum paper feeding speed |
48 m/min |
| CIP4 |
Standard |
| Automatic lubrication system |
Standard |
| Back‑knife safety |
Standard |
| Knife blade |
Imported sharp steel blade |
| Stepless pressure adjustment for paper clamp |
Standard |
| Dual worm-gear drive mechanism |
None |
| Cutting height |
165 mm |
| Machine frame structure |
Split type |
| Control computer |
22 inches |
| Waste removal function (movable main platform) |
Optional |
Main performance
1. High-precision, high-rigidity frame-type paper feeding mechanism, equipped with linear guide rails and high-precision gapless ball screw, ensures paper feeding accuracy.
2. The display screen adopts the product of AU, a Taiwanese LCD screen manufacturer, to ensure its service life.
3. The computer part is an industrial computer from Taiwan, which has reliable performance and stability, and can realize multi-machine communication and remote computer management.
4. The computer operation screen adopts a humanized design, making it easy for operators to operate.
5. The paper feeding motor adopts Japan's Yaskawa servo motor to achieve high-precision and fast positioning.
6. The computer control part is powered by Mean Well (MW) switching power supply, which ensures the stability of the power supply, effectively protects the computer control part, and avoids damage to the computer control part caused by excessive power supply.

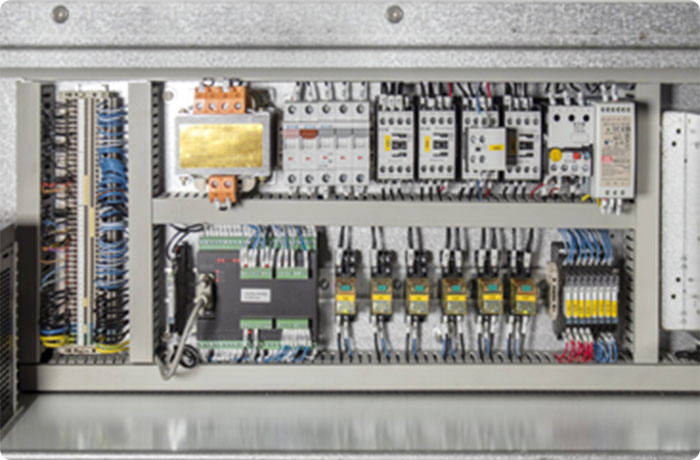

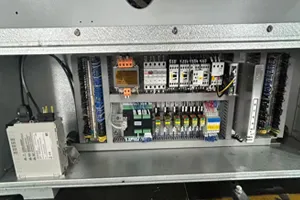

7. The main low-voltage control parts of the whole machine all use imported electrical appliances, including OMRON, IDEC, Schneider, American EATON, etc.

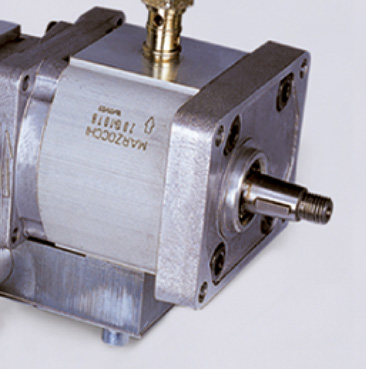

8. The hydraulic part adopts a fast boost system, the pressure meets the German TUV safety certification, and the American proportional valve is used to achieve stepless pressure adjustment through a 19-inch touch screen.
9. The whole machine adopts a gantry structure, which is convenient for users to install and adjust.
10. The frame adopts an internationally popular split structure, which effectively improves the cutting accuracy of the machine and facilitates user maintenance.
11. The chrome-plated working platform saves users' maintenance time and extends its service life.
12. The working platform is also equipped with a blowing structure to facilitate paper pushing and feeding.
13. The built-in knife back insurance structure and the Swiss AB safety grating with high reliability to protect both hands from cutting ensure the personal safety of the operator.
14. The uniquely designed knife back insurance structure avoids damage to the machine caused by misoperation.
15. All large parts of the whole machine have been treated with aging vibration and will not deform after long-term use.
16. The efficient worm gear transmission structure greatly improves the work efficiency, so that the cutting frequency can reach 45 times/minute.
17. The hook-type knife-mounting structure makes knife-changing simple and easy.

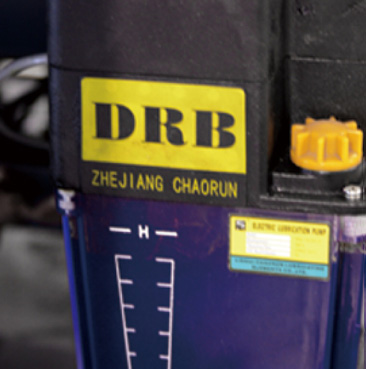

18. The cutting part is equipped with an automatic lubrication system to increase work efficiency and extend the service life of the equipment.
19. The high-performance CIP4 program function is equipped as standard, which greatly improves the intelligence level of the machine and improves work efficiency. Compatible with PDF, JDF+JPG formats.
20. The fast paper feeder runs at a speed of up to 48m/min.
21. The ultra-large LCD display screen dynamically guides the machine operation process.
22. The pressure is automatically adjusted according to the size of the paper.
