Installation parameters
| Category |
1370（Twin Turbine） |
| Machine length |
3185mm |
| Machine width |
3370mm |
| Machine height |
1800mm |
| Machine foundation length |
750mm |
| Machine foundation width |
750mm |
| Machine foundation thickness |
200mm |
| Machine half width |
1345mm |
| Net weight |
4800kg |
| Packing size |
3600*1600*2100mm |
Technical parameters
| Category |
1370（Twin Turbine） |
| Maximum cutting length |
1730mm |
| Maximum cutting width |
1370mm |
| Maximum cutting height (excluding pressure plate) |
210mm |
| Minimum cutting |
With pressure plate: 95mm
Without pressure plate: 25mm |
| Length in front of cutting point table |
755mm |
| Length behind cutting point table |
2205mm |
| Auxiliary platform length (optional) |
750mm |
| Auxiliary platform width (optional) |
1000mm |
| Desktop height |
900mm |
| Pressing plate pressure |
Min: 200daN
Max: 4500daN |
Blade specification
(thickness*width*length) |
13.75*160*1630mm |
| Maximum sharpening point |
60mm |
| Cutting speed |
45 times/min |
| Paper feeding speed (maximum) |
48 meters/min |
| Main power |
5.5kw |
| Power supply voltage |
380v |
| Wire thickness |
4mm² |
Configuration parameters
| Category |
G series |
| Maximum paper feeding speed |
48m/min |
| CIP4 |
Optional |
| Automatic lubrication system |
Standard |
| Electronic knife lock |
Standard |
| Blade |
Imported sharp steel blade |
| Stepless pressure adjustment for paper presser |
Standard |
| Dual worm gear transmission structure |
None |
| Cutting height |
16.5cm |
| Machine body structure |
Split type |
| Operation computer |
22 inches |
| Waste removal function (movable main platform) |
Optional |
Main performance
1. High-precision, high-rigidity frame-type paper feeding mechanism, equipped with linear guide rails and high-precision gapless ball screw, ensures paper feeding accuracy.
2. The display screen adopts the product of AU, a Taiwanese LCD screen manufacturer, to ensure its service life.
3. The computer part is an industrial computer from Taiwan, which has reliable performance and stability, and can realize multi-machine communication and remote computer management.
4. The computer operation screen adopts a humanized design, making it easy for operators to operate.
5. The paper feeding motor adopts Japan's Yaskawa servo motor to achieve high-precision and fast positioning.

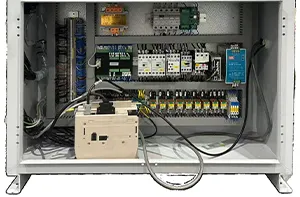

6. The computer control part is powered by Mean Well (MW) switching power supply, which ensures the stability of the power supply, effectively protects the computer control part, and avoids damage to the computer control part caused by excessive power supply.
7. The main low-voltage control parts of the whole machine all use imported electrical appliances, including OMRON, IDEC, Schneider, American EATON, etc.
8. The hydraulic part adopts a fast boost system, the pressure complies with the German TUV safety certification, and the American proportional valve is used to achieve stepless pressure adjustment through a 19-inch touch screen.
9. The whole machine adopts a gantry structure, which is convenient for users to install and adjust.

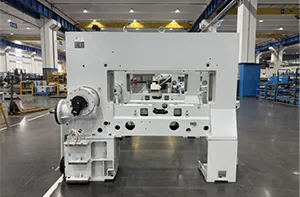

10. The frame adopts an internationally popular split structure, which effectively improves the cutting accuracy of the machine and facilitates user maintenance.
11. The chrome-plated working platform saves users' maintenance time and extends its service life.
12. The working platform is also equipped with a blowing structure to facilitate paper pushing and feeding.
13. The built-in knife back insurance structure and highly reliable 10 sets of light and shadow grating protection ensure the personal safety of the operator.
14. The uniquely designed knife back insurance structure avoids damage to the machine caused by misoperation.
15. All large parts of the whole machine have been treated with aging vibration and will not deform after long-term use.

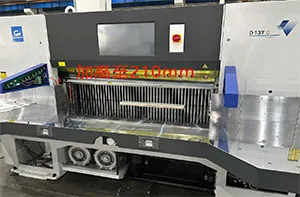

16. The efficient double worm gear transmission structure greatly improves work efficiency, allowing the cutting frequency to reach 45 times/minute.
17. The hook-type knife-loading structure makes knife-changing work simple and easy.
18. The cutting part is equipped with an automatic lubrication system as standard, which increases work efficiency and extends the service life of the equipment.
19. The high-performance CIP4 program function is standard, which greatly improves the intelligence level of the machine and improves work efficiency. Compatible with PDF, JDF+JPG format
20. The fast paper feeder runs at a speed of up to 48m/min.
21. The ultra-large LCD display screen dynamically guides the machine operation process.
22. The pressure is automatically adjusted according to the size of the paper.
23. The paper press adopts a double spring structure to ensure the safety of the operator.
