C106H Fully Automatic Heating Die Cutting Machine

Sheet size

Max. die-cutting size

Max. die-cutting speed

REQUEST A QUOTE

Compare

Download
C106H
Fully Automatic Heating Die Cutting Machine
Introduction

High pressure deep embossing: can meet the needs of products such as wine packaging that require high pressure and strong three-dimensional sense.

Independent temperature zone control: the equipment uses 20 independently controlled temperature zones, which can be heated and controlled separately to achieve energy saving.

High efficiency and cost saving: fast conversion from die-cutting to waste removal to achieve efficient production data management.

High-tech die-cutting: this machine has excellent versatility, extraordinary production efficiency, simple operation and excellent product quality.

Humanized operation interface: the hot stamping part uses a 19-inch high-definition touch screen, and all settings and functions can be easily realized by touch. Based on the special understanding of the equipment, a unique operation and control system has been developed, which is simple, intuitive and easy to operate.

upload/1c/202505/automatic-die-cutting-machine-with-stripping-2-0712.jpg
Details
upload/1c/202505/automatic-foil-stamping-die-cutting-machine-01.jpg
High-quality dental films
High-quality dental films imported from Japan, unparalleled durability
upload/1c/202505/double-unit-automatic-heavy-pressing-hot-stamping-waste-removing-die-cutting-machine-2.jpg
Reinforced mechanical wall panels
Reinforced mechanical wall panels can meet the needs of high-pressure hot stamping and die-cutting
upload/1c/202505/automatic-foil-stamping-die-cutting-machine-02.jpg

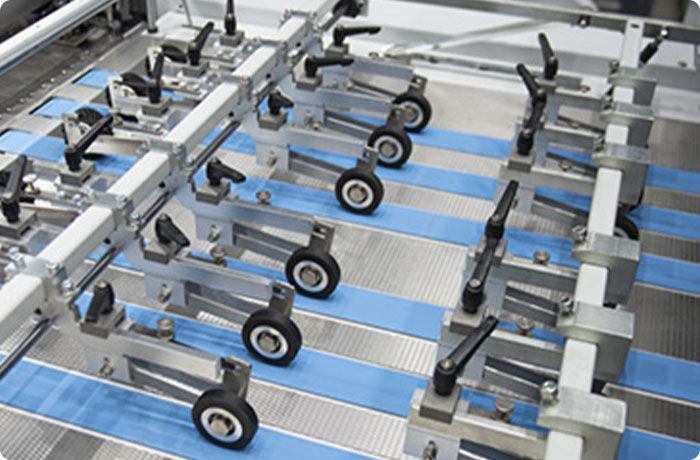

Conveyor belt and antistatic steel plate
Conveyor belt and antistatic steel plate ensure ideal material transfer synchronization device, high-quality control of paper arrival at the front gauge, reducing downtime due to faults
upload/1c/202505/double-unit-automatic-heavy-pressing-hot-stamping-waste-removing-die-cutting-machine-3.jpg
Real-time pressure detection
Real-time pressure detection ensures safe operation of the machine (optional)
Parameters
Items C106H
Paper size MIN. 450*370mm
MAX. 1060*760mm
Paper specifications Gray board:0.1-3mm
Corrugated board:≤4mm
Card Board:90~2000g/m²
Max. die-cut format 1045*745mm
Gripper margin range 9-17mm
Max. die-cutting pressure 550t
Max. die-cutting speed 6000s/h
Die-cutting accuracy ≤±0.075mm
Feeder pile height (including pallet) 1600mm
Delivery pile height (including pallet) 1350mm
Heated area 6 temperature zones,Heating temperature 20-120°C
Die-cut plate frame size 1100*770mm
Main motor power 15kw
Total installed power 35kw
Air‑supply requirement 6-8bar;200L/min
Total weight (including footrests) 17.5t
Machine Dimensions (including footrests) 5290*2300*2530mm
From requirements analysis to equipment delivery, we provide full-process service support:

24/7 online technical support with over 95% fault diagnosis accuracy.

On-site operation, maintenance, and GMP compliance training to ensure rapid team proficiency.

Global spare parts inventory network with rapid response within 72 hours.

Hardware/software upgrade solutions tailored to customer production capacity requirements.
